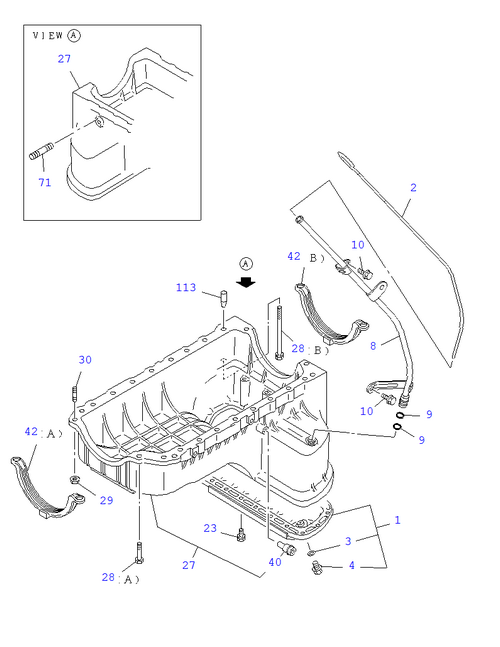

0-13 | OIL PAN AND LEVEL GAUGE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97131 905-0 | PAN ASM; OIL | 1 | 1802- | TRAGA | |||
| 004 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 1802- | TRAGA | M14X14 | ||
| 009 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1802- | TRAGA | ID=11 | ||
| 113 | I9-09878 597-0 | PIN; STRAIGHT | 2 | 1802- | TRAGA | L=31 | ||
| 030 | I0-41010 835-0 | STUD; CRANKCASE | 2 | 1802- | TRAGA | M8X35 L=4 7 | ||
| 002 | I8-98268 294-0 | GAUGE; OIL LEVEL | 1 | 1802- | TRAGA | |||
| 023 | I8-97135 141-0 | BOLT; OIL PAN | 17 | 1802- | TRAGA | M6X13 W/PL WASHER | ||
| 008 | I8-98247 201-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1802- | TRAGA | |||
| 042 | I8-97120 933-0 | GASKET; CRANKCASE TO C/BL | 1 | 1802- | TRAGA | (A) | ||
| 029 | I0-91180 108-0 | NUT; CRANKCASE | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 040 | I5-11369 038-0 | NIPPLE; OIL RETURN HOSE VAC PUMP | 1 | 1802- | TRAGA | |||
| 010 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 1802- | TRAGA | M8X16 FLANGE | ||
| 042 | I8-97123 342-0 | GASKET; CRANKCASE TO C/BL | 1 | 1802- | TRAGA | (B) | ||
| 003 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1802- | TRAGA | ID=14.2 OD=24 | ||
| 071 | I0-41010 818-0 | STUD; OIL DRAIN PIPE | 2 | 1802- | TRAGA | M8X18 L=3 0 | ||
| 028 | I0-28055 812-0 | BOLT; CRANKCASE TO C/BL | 1 | 1802- | TRAGA | (B) M8X12 0 FLANGE | ||
| 027 | I8-97358 796-0 | CRANKCASE | 1 | 1802- | TRAGA | |||
| 028 | I0-50540 832-0 | BOLT; CRANKCASE TO C/BL | 19 | 1802- | TRAGA | (A) M8X32 W/LK WASHER | ||
| 001 | I6-97131 905-0 | PAN ASM; OIL | 1 | 1802- | (IADG) |
