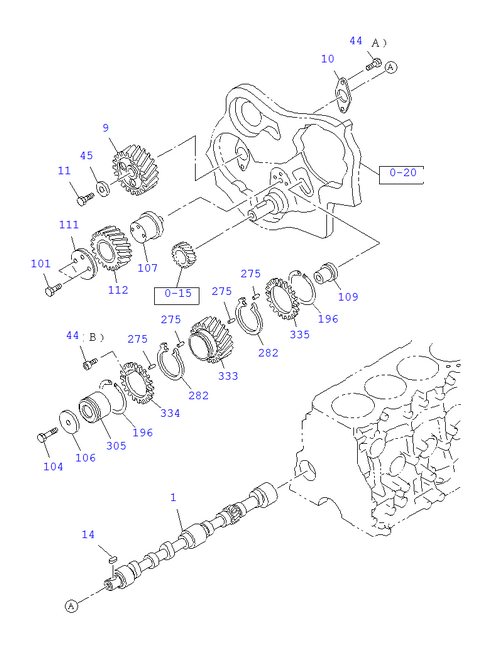

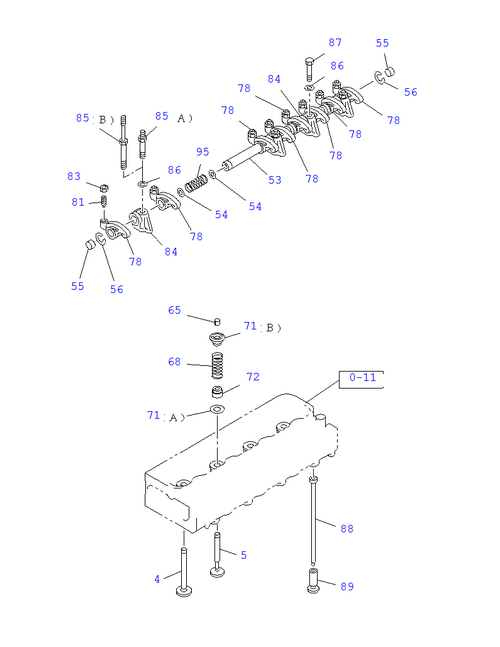

0-14 | CAMSHAFT AND VALVE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 109 | I8-97943 225-0 | SHAFT; IDLE GEAR | 1 | 1802- | TRAGA | |||
| 044 | I0-28050 816-0 | BOLT | 2 | 1802- | TRAGA | (A) M8X16 FLANGE | ||
| 086 | I9-09164 510-0 | WASHER; ROCKER ARM FIX | 4 | 1802- | TRAGA | ID=10.5 | ||
| 084 | I8-94152 345-A | BRACKET; ROCKER SHAFT,INTER | 4 | 1802- | TRAGA | |||
| 106 | I5-12519 002-1 | WASHER; IDLE GEAR SHAFT | 1 | 1802- | TRAGA | ID=13 OD=3 6 | ||
| 282 | I8-97245 337-0 | SPRING; GEAR | 2 | 1802- | TRAGA | |||
| 305 | I8-97240 019-1 | BEARING; IDLE GEAR | 1 | 1802- | TRAGA | |||
| 333 | I8-97240 018-2 | GEAR; IDLE,MAIN | 1 | 1802- | TRAGA | Z=52 | ||
| 112 | I8-97240 014-A | GEAR; IDLE | 1 | 1802- | TRAGA | Z=43 | ||
| 107 | I8-97943 224-0 | SHAFT; IDLE GEAR | 1 | 1802- | TRAGA | |||
| 005 | I6-94247 875-0 | VALVE; EXH | 4 | 1802- | (IADG) | |||
| 004 | I6-97940 024-0 | VALVE; INL | 4 | 1802- | (IADG) | |||
| 081 | I8-94152 283-A | SCREW; ADJ,ROCKER ARM | 8 | 1802- | TRAGA | M8 L=30 | ||
| 054 | I8-94341 906-A | WASHER; ROCKER SPR | 6 | 1802- | TRAGA | ID=19.1 OD=23 | ||
| 095 | I8-94341 905-A | SPRING; ROCKER SHAFT | 3 | 1802- | TRAGA | |||
| 009 | I8-97240 012-2 | GEAR; CM/SHF | 1 | 1802- | TRAGA | Z= 6 0 | ||
| 196 | I8-97245 684-1 | RING; SNAP | 2 | 1802- | TRAGA | |||
| 083 | I9-09111 508-A | NUT; ADJ SCREW,LK | 8 | 1802- | TRAGA | M8 | ||
| 072 | I8-97120 307-0 | SEAL; VLV GUIDE | 8 | 1802- | TRAGA | |||
| 045 | I5-12519 002-1 | WASHER; GEAR CAM | 1 | 1802- | TRAGA | ID=13 OD=36 | ||
| 111 | I8-94171 289-0 | COLLAR; THRUST,IDLE GEAR | 1 | 1802- | TRAGA | |||
| 085 | I8-94437 493-A | BOLT; BRKT | 1 | 1802- | TRAGA | (B) M8X37 & M10X60 L=104 | ||
| 078 | I8-94152 344-A | ARM; ROCKER | 8 | 1802- | TRAGA | |||
| 068 | I8-98276 958-A | SPRING; VLV | 8 | 1802- | TRAGA | |||
| 010 | I8-94110 480-1 | PLATE; THRUST | 1 | 1802- | TRAGA | |||
| 011 | I8-94433 407-0 | BOLT; THRUST PLATE TO C/BL | 1 | 1802- | TRAGA | M12X47 | ||
| 334 | I8-97245 232-2 | GEAR; IDLE,FRT | 1 | 1802- | TRAGA | Z=52 | ||
| 044 | I9-05820 630-0 | BOLT | 1 | 1802- | TRAGA | (B) M6X3 0 HEX SOCKET | ||
| 104 | I8-94129 384-1 | BOLT; SHAFT IDLE | 1 | 1802- | TRAGA | M12X77 | ||
| 088 | I8-97378 496-0 | ROD; PUSH | 8 | 1802- | TRAGA | |||
| 001 | I8-94127 797-A | CAMSHAFT | 1 | 1802- | TRAGA | |||
| 055 | I9-12626 005-A | PLUG; ROCKER SHAFT END | 2 | 1802- | TRAGA | |||
| 275 | I8-97245 683-0 | PIN; IDLE GEAR | 4 | 1802- | TRAGA | OD=5 L= 7.5 | ||
| 014 | I9-08000 718-0 | KEY; CM/SHF | 1 | 1802- | TRAGA | |||
| 056 | I9-09180 019-0 | RING; SNAP,ROCKER ARM | 2 | 1802- | TRAGA | ID=17.5 | ||
| 101 | I8-97223 999-0 | BOLT; THRUST COLLAR | 2 | 1802- | TRAGA | M8X53 FLANGE | ||
| 053 | I8-97036 197-A | SHAFT; ROCKER ARM | 1 | 1802- | TRAGA | |||
| 335 | I8-97245 231-1 | GEAR; IDLE,RR | 1 | 1802- | TRAGA | Z=52 | ||
| 087 | I8-94433 302-A | BOLT; ROCKER SHAFT | 1 | 1802- | TRAGA | M10X60 | ||
| 085 | I8-94433 304-0 | BOLT; BRKT | 2 | 1802- | TRAGA | (A) M8X15,M10X60 L=82 | ||
| 065 | I5-12565 004-0 | COLLAR; SPLIT | 16 | 1802- | TRAGA | |||
| 071 | I8-94133 731-2 | SEAT; SPR | 8 | 1802- | TRAGA | (B) OD=32.8 | ||
| 071 | I5-12563 001-0 | SEAT; SPR | 8 | 1802- | TRAGA | (A) OD=34 | ||
| 004 | I8-97940 024-0 | VALVE; INL | 4 | 1802- | TRAGA | |||
| 005 | I8-94247 875-2 | VALVE; EXH | 4 | 1802- | TRAGA | |||
| 089 | I8-94438 305-1 | TAPPET; VLV | 8 | 1802- | TRAGA |
