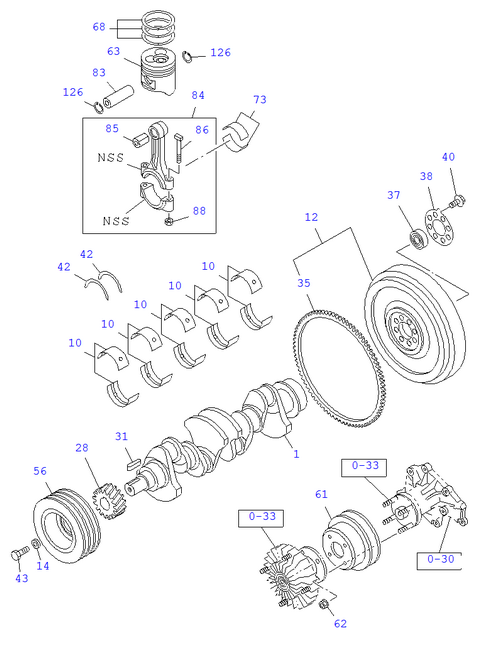

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I6-00090 679-1 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 1802- | TRAGA | (IADG) | ||
| 062 | I8-98049 362-0 | NUT; FAN PULLEY | 4 | 1802- | TRAGA | M6 FLANGE | ||
| 056 | I8-97306 533-A | PULLEY; CR/SHF DAMPER | 1 | 1802- | TRAGA | 3 -GROOVE | ||
| 014 | I5-09503 127-1 | WASHER; PULLEY DAMPER | 1 | 1802- | TRAGA | ID=16.5 OD=4 5 T=12 | ||
| 126 | I8-94133 969-0 | RING; SNAP,PISTON PIN | 8 | 1802- | TRAGA | ID=33.9 | ||
| 031 | I8-94201 641-0 | KEY; FEATHER,CR/SHF | 1 | 1802- | TRAGA | |||
| 040 | I8-97065 984-1 | BOLT; FLYWHEEL | 8 | 1802- | TRAGA | M13X36 | ||
| 042 | I8-97957 095-A | WASHER; THRUST,CR/SHF | 2 | 1802- | TRAGA | (IADG) | ||
| 063 | I8-97942 988-0 | PISTON | 4 | 1802- | TRAGA | GRADE=CX | ||
| 037 | I6-00090 679-1 | BEARING; PILOT | 1 | 1802- | (IADG) | |||
| 063 | I8-97942 974-A | PISTON | 4 | 1802- | TRAGA | GRADE=AX | ||
| 073 | I8-97959 005-0 | METAL SET; CONN ROD,STANDARD | 4 | 1802- | TRAGA | |||
| 084 | I8-97651 738-0 | ROD ASM; CONN | 4 | 1802- | TRAGA | |||
| 037 | I9-00090 679-A | BEARING; PILOT,TOP GEAR SHAFT | 1 | 1802- | TRAGA | |||
| 010 | I8-97958 913-A | METAL SET; CRANKSHAFT,STANDARD | 5 | 1802- | TRAGA | BLACK | ||
| 010 | I8-97958 916-A | METAL SET; CRANKSHAFT,STANDARD | 5 | 1802- | TRAGA | YELLOW | ||
| 010 | I8-97958 915-A | METAL SET; CRANKSHAFT,STANDARD | 5 | 1802- | TRAGA | BROWN | ||
| 037 | I9-00090 679-0 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 1802- | TRAGA | |||
| 001 | I8-97943 034-0 | CRANKSHAFT | 1 | 1802- | TRAGA | |||
| 086 | I5-12235 009-0 | BOLT; CONNROD | 8 | 1802- | TRAGA | M11X59 | ||
| 012 | I8-94172 529-A | FLYWHEEL | 1 | 1802- | TRAGA | |||
| 028 | I8-97240 011-2 | GEAR; CR/SHF | 1 | 1802- | TRAGA | Z = 3 0 | ||
| 035 | I8-94419 602-1 | GEAR; RING | 1 | 1802- | TRAGA | Z = 108 | ||
| 010 | I8-97958 914-A | METAL SET; CRANKSHAFT,STANDARD | 5 | 1802- | TRAGA | BLUE | ||
| 010 | I8-97958 912-A | METAL SET; CRANKSHAFT,STANDARD | 5 | 1802- | TRAGA | GREEN | ||
| 088 | I5-09409 016-0 | NUT; CONNROD | 8 | 1802- | TRAGA | M11 | ||
| 085 | I8-97352 889-0 | BUSHING; CONNROD | 4 | 1802- | TRAGA | AFTER PRESS FITTING, MACHINE IT. | ||
| 083 | I8-94454 479-0 | PIN; PISTON | 4 | 1802- | TRAGA | |||
| 061 | I8-94146 638-2 | PULLEY; FAN DRIVE | 1 | 1802- | TRAGA | 1-GROOVE | ||
| 038 | I8-98171 700-0 | WASHER; FLYWHEEL | 1 | 1802- | TRAGA | ID=50.5 OD=9 7 | ||
| 068 | I5-87310 757-A | RING SET; PISTON,STANDARD | 4 | 1802- | TRAGA | |||
| 043 | I5-09000 273-2 | BOLT; CR/SHF PULLEY | 1 | 1802- | TRAGA | M16X43 |
