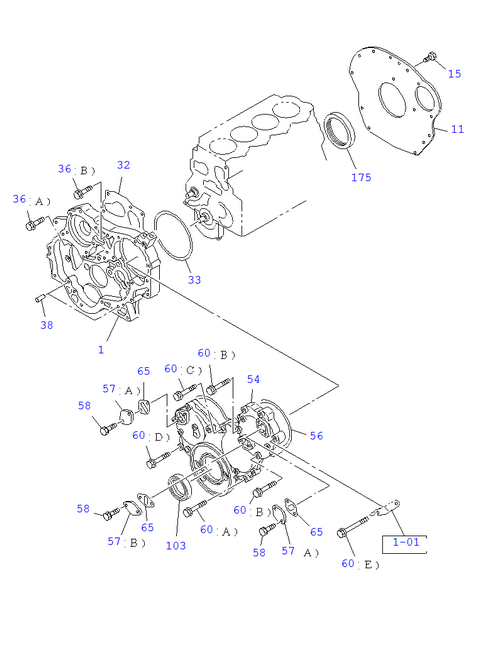

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 033 | I8-97912 581-0 | GASKET; BRKT TO CASE | 1 | 1802- | TRAGA | |||
| 060 | I8-94130 055-1 | BOLT; COVER TO CASE | 1 | 1802- | TRAGA | (D) M8X58 FLANGE | ||
| 060 | I0-28050 830-0 | BOLT; COVER TO CASE | 8 | 1802- | TRAGA | (A) M8X3 0 FLANGE | ||
| 001 | I8-97306 429-1 | CASE; TIMING GEAR | 1 | 1802- | TRAGA | |||
| 060 | I0-50540 870-0 | BOLT; COVER TO CASE | 5 | 1802- | TRAGA | (B) M8X70 W/LK WASHER | ||
| 065 | I8-97922 242-0 | GASKET; COVER,TIMING CHECK HOLE | 3 | 1802- | TRAGA | |||
| 060 | I0-28050 880-0 | BOLT; COVER TO CASE | 1 | 1802- | TRAGA | (E) M8X8 0 FLANGE | ||
| 015 | I5-09000 227-0 | BOLT; RR PLATE TO C/BL | 3 | 1802- | TRAGA | M12X25 | ||
| 058 | I0-28050 612-0 | BOLT; CHECK HOLE COVER | 6 | 1802- | TRAGA | M6X12 FLANGE | ||
| 175 | I8-97071 561-1 | SEAL; OIL,CR/SHF,RR | 1 | 1802- | TRAGA | ID=95 OD=118 | ||
| 060 | I0-58331 255-0 | BOLT; COVER TO CASE | 1 | 1802- | TRAGA | (C) M12X55 HEX SOCKET | ||
| 057 | I8-97520 918-A | COVER; TIMING CHECK HOLE | 1 | 1802- | TRAGA | (B) | ||
| 038 | I8-97135 423-0 | PIN; GEAR CASE COVER | 2 | 1802- | TRAGA | OD=10 L=2 0 | ||
| 056 | I8-97238 631-0 | GASKET; GEAR CASE TO COVER | 1 | 1802- | TRAGA | |||
| 032 | I8-97129 426-1 | GASKET; GEAR CASE TO C/BL | 1 | 1802- | TRAGA | |||
| 175 | I6-97071 561-0 | SEAL;OIL CR/SHAFT, RR | 1 | 1802- | ID=95 OD=118 (IADG) | |||
| 036 | I0-50740 820-0 | BOLT; GEAR CASE | 6 | 1802- | TRAGA | (A) M8X2 0 W/LK WASHER | ||
| 057 | I5-11321 009-0 | COVER; TIMING CHECK HOLE | 2 | 1802- | TRAGA | (A) | ||
| 036 | I0-50740 845-0 | BOLT; GEAR CASE | 2 | 1802- | TRAGA | (B) M8X4 5 W/LK WASHER | ||
| 011 | I8-97545 102-A | PLATE; RR,C/BL | 1 | 1802- | TRAGA | |||
| 054 | I8-97306 431-2 | COVER; GEAR CASE | 1 | 1802- | TRAGA | |||
| 103 | I8-97351 704-0 | SEAL; OIL,CR/SHF,FRT | 1 | 1802- | TRAGA |
