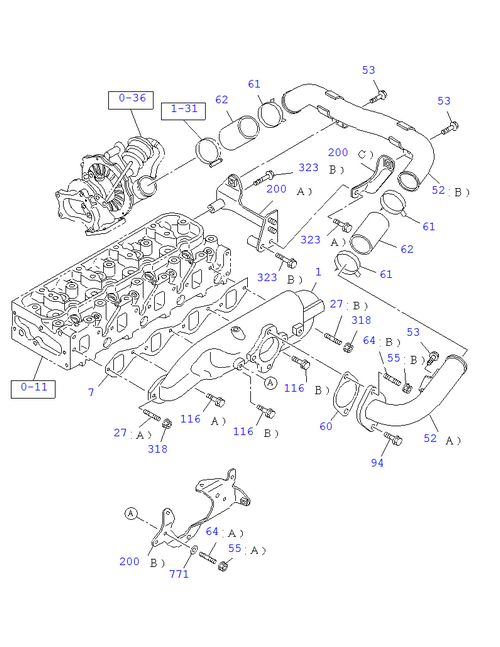

0-25 | INLET MANIFOLD
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 323 | I0-28050 845-0 | BOLT; DUCT | 2 | 1802- | TRAGA | (B) M8X4 5 FLANGE | ||
| 200 | I8-98268 417-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (A) | ||
| 064 | I0-41010 818-0 | STUD; INL PIPE | 2 | 1802- | TRAGA | (A) M8X18 L=3 0 | ||
| 055 | I0-91180 208-0 | NUT; INL PIPE | 2 | 1802- | TRAGA | (A) M8 FLANGE | ||
| 061 | I8-97131 943-0 | CLIP; CONNECTOR HOSE | 3 | 1802- | TRAGA | ID=4 5.5-56.5 | ||
| 116 | I0-50540 830-0 | BOLT; MANIF TO INL PIPE | 2 | 1802- | TRAGA | (B) M8X3 0 W/LK WASHER | ||
| 062 | I8-98268 221-A | HOSE; CONNECTOR | 2 | 1802- | TRAGA | |||
| 007 | I8-97301 838-1 | GASKET; INL MANIF TO HD | 1 | 1802- | TRAGA | |||
| 116 | I0-50540 825-0 | BOLT; MANIF TO INL PIPE | 4 | 1802- | TRAGA | (A) M8X25 W/LK WASHER | ||
| 027 | I9-09630 034-1 | STUD; INL MANIF | 1 | 1802- | TRAGA | (B) M8X35 L=4 6 | ||
| 771 | I0-91614 608-0 | WASHER; DUCT | 2 | 1802- | TRAGA | ID=8.4 OD=18 | ||
| 052 | I8-98268 240-A | PIPE; INL | 1 | 1802- | TRAGA | (B) | ||
| 064 | I0-44011 025-0 | STUD; INL PIPE | 1 | 1802- | TRAGA | (B) M10X25 L=40 | ||
| 052 | I8-98268 238-A | PIPE; INL | 1 | 1802- | TRAGA | (A) | ||
| 001 | I8-98270 899-A | MANIFOLD; INL | 1 | 1802- | TRAGA | |||
| 318 | I0-91180 208-0 | NUT; INL MANIF | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 323 | I0-28050 820-0 | BOLT; DUCT | 1 | 1802- | TRAGA | (A) M8X2 0 FLANGE | ||
| 027 | I0-41010 825-0 | STUD; INL MANIF | 1 | 1802- | TRAGA | (A) M8X25 L=3 7 | ||
| 053 | I0-28050 820-0 | BOLT; INL PIPE | 3 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 094 | I0-28151 025-0 | BOLT | 1 | 1802- | TRAGA | M10X2 5 FLANGE | ||
| 200 | I8-98268 419-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (C) | ||
| 200 | I8-98268 418-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (B) | ||
| 060 | I8-98312 779-0 | GASKET; INL PIPE | 1 | 1802- | TRAGA | |||
| 055 | I7-05110 010-A | NUT; INL PIPE | 1 | 1802- | TRAGA | (B) M10 FLANGE |
