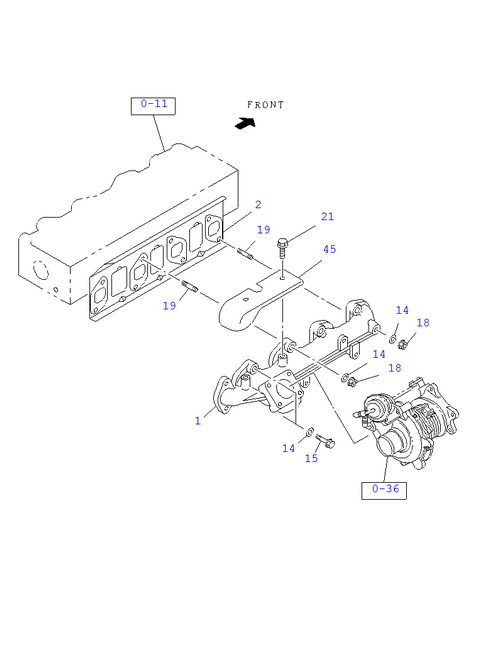

0-27 | EXHAUST MANIFOLD
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 014 | I8-97257 914-0 | WASHER; PL,EXH MANIF | 8 | 1802- | TRAGA | ID= 8.5 OD=15 T=4 | ||
| 045 | I8-97214 580-0 | PROTECTOR; HEAT,MANIF,RR | 1 | 1802- | TRAGA | |||
| 019 | I8-97378 065-0 | STUD; MANIF TO CYL HD | 2 | 1802- | TRAGA | M8X35 L=46 | ||
| 002 | I8-97350 317-2 | GASKET; EXH MANIF TO HD | 1 | 1802- | TRAGA | |||
| 001 | I8-97217 908-0 | MANIFOLD; EXHAUST | 1 | 1802- | TRAGA | |||
| 021 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 2 | 1802- | TRAGA | M8X12 FLANGE | ||
| 018 | I8-97161 607-0 | NUT; EXH MANIF | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 015 | I8-98053 224-0 | BOLT; EXH MANIF | 6 | 1802- | TRAGA | M8X3 5 FLANGE |
