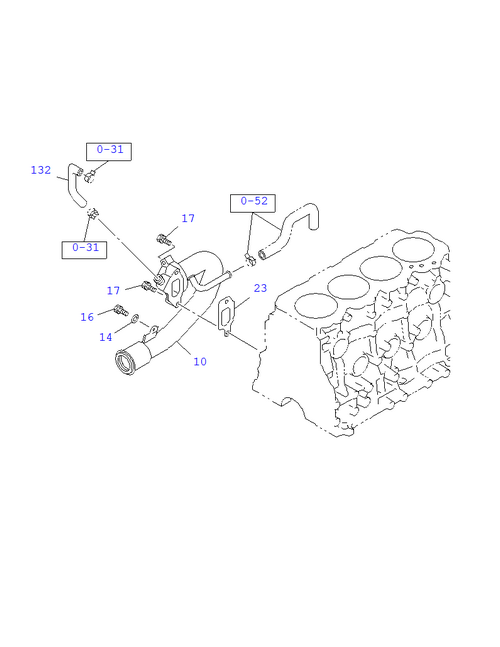

0-32 | WATER PIPING; ENGINE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 014 | I8-94174 537-0 | WASHER; PL,INL PIPE TO BRKT | 1 | 1802- | TRAGA | ID=8 OD=18 T=3 | ||
| 010 | I8-97264 246-1 | PIPE; SUCTION | 1 | 1802- | TRAGA | |||
| 132 | I8-98288 835-A | HOSE; WATER PIPE | 1 | 1802- | TRAGA | |||
| 023 | I8-97943 089-0 | GASKET; SUCTION PIPE TO BLOCK | 1 | 1802- | TRAGA | |||
| 016 | I0-50540 820-0 | BOLT; INL PIPE | 1 | 1802- | TRAGA | M8X2 0 W/LK WASHER | ||
| 017 | I0-50540 850-0 | BOLT; SUCTION PIPE | 2 | 1802- | TRAGA | M8X50 W/LK WASHER |
