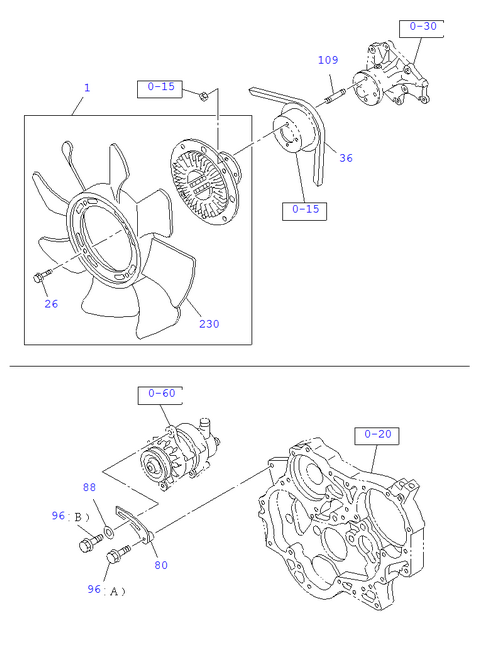

0-33 | FAN AND FAN BELT
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

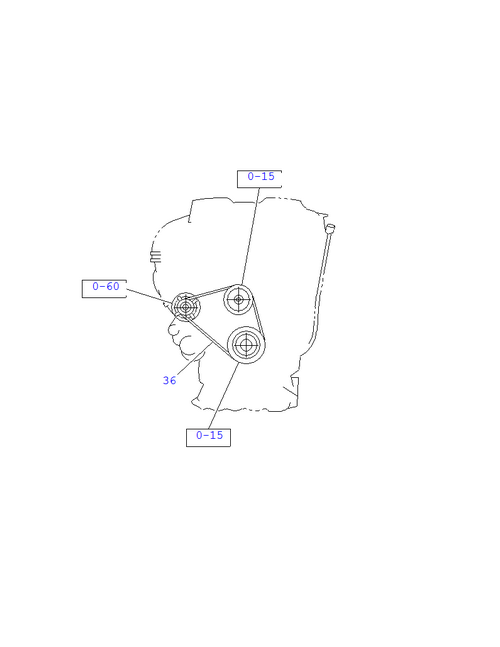

| 036 | I8-97957 509-A | BELT; COOLING FAN | 1 | 1802- | TRAGA | SBR | ||
| 109 | I0-41010 618-0 | STUD; FAN CLU | 4 | 1802- | TRAGA | M6X18 L=27 | ||
| 096 | I0-28050 845-0 | BOLT; ADJ PLATE | 1 | 1802- | TRAGA | (A) M8X4 5 FLANGE | ||
| 080 | I8-97306 546-0 | PLATE; ADJ | 1 | 1802- | TRAGA | |||
| 088 | I0-91614 708-0 | WASHER; PL,ADJ PLATE | 1 | 1802- | TRAGA | ID=8.4 OD=22 T=2 | ||
| 230 | I8-97100 991-1 | FAN; COOLING | 1 | 1802- | TRAGA | |||
| 096 | I0-50540 825-0 | BOLT; ADJ PLATE | 1 | 1802- | TRAGA | (B) M8X25 W/LK WASHER | ||
| 026 | I8-94389 764-0 | BOLT; FAN TO CLU | 4 | 1802- | TRAGA | |||
| 001 | I8-98292 555-A | FAN; COOLING | 1 | 1802- | TRAGA |
