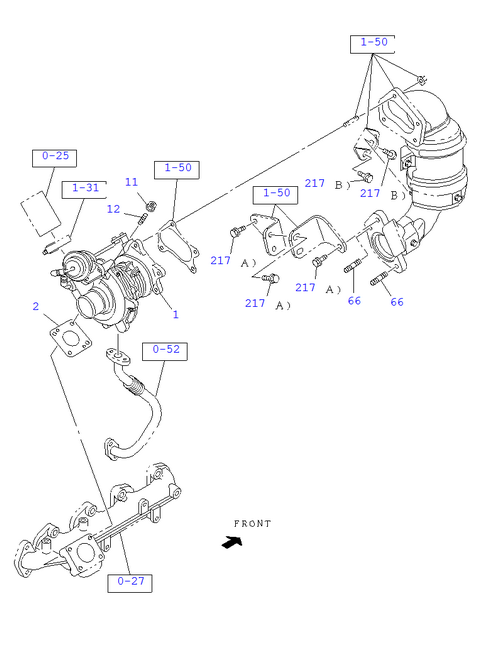

0-36 | TURBOCHARGER SYSTEM
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 217 | I0-28051 025-0 | BOLT; BRKT | 3 | 1802- | TRAGA | (B) M10X2 5 FLANGE | ||
| 002 | I8-97315 266-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 1802- | TRAGA | |||
| 011 | I8-97161 607-0 | NUT; TURBO CHARGE R | 4 | 1802- | TRAGA | M8 FLANGE | ||
| 217 | I0-28051 020-0 | BOLT; BRKT | 5 | 1802- | TRAGA | (A) M10X2 0 FLANGE | ||
| 012 | I8-97378 060-0 | STUD; TURBOCHARGER | 4 | 1802- | TRAGA | M8X20 L=31 | ||
| 001 | I8-98268 220-0 | TURBOCHARGER ASM | 1 | 1802- | TRAGA | |||
| 066 | I0-44011 025-0 | STUD; EXH PIPE | 2 | 1802- | TRAGA | M10X25 L=40 |
