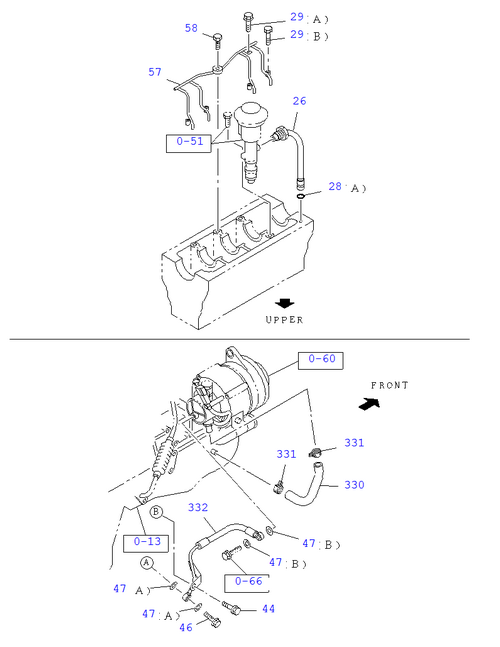

0-52 | OIL AND VACUUM PIPING; ENGINE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 331 | I8-97108 102-0 | CLAMP; VAC HOSE,PUMP RETURN | 2 | 1802- | TRAGA | |||

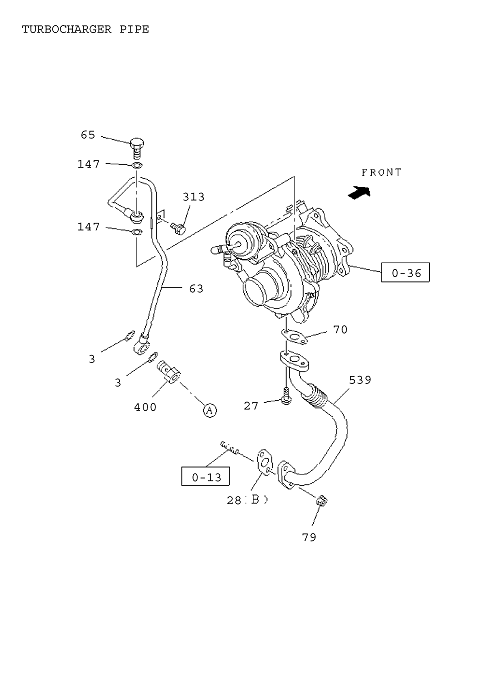

| 539 | I8-98235 431-0 | PIPE; OIL,TURBOCHARGER DRAIN | 1 | 1802- | TRAGA | |||
| 147 | I9-09571 410-0 | GASKET; OIL PIPE TO TURBOCHARGER | 2 | 1802- | TRAGA | ID=10.2 OD=16.0 | ||
| 312 | I8-97581 233-0 | NUT; PIPE FIX | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 029 | I0-28050 810-0 | BOLT; OIL PIPE,OIL JET | 1 | 1802- | TRAGA | (A) M8X10 FLANGE | ||
| 026 | I8-97923 928-0 | PIPE; OIL,PUMP TO C/BL | 1 | 1802- | TRAGA | |||
| 311 | I0-28050 812-A | BOLT; PIPE FIX | 1 | 1802- | TRAGA | M8X12 FLANGE | ||
| 044 | I0-28650 820-0 | BOLT; CLIP,OIL PIPE | 1 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 332 | I8-97942 810-0 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 1802- | TRAGA | |||
| 310 | I8-94125 862-1 | CLIP; WATER HOSE FIX | 4 | 1802- | TRAGA | ID=20.8 | ||
| 003 | I9-09571 414-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1802- | TRAGA | ID=14.2 OD=2 0 | ||
| 028 | I5-09623 002-0 | GASKET; OIL PIPE | 1 | 1802- | TRAGA | (A) ID=11 | ||
| 079 | I8-97581 233-0 | NUT; OIL DRAIN PIPE | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 309 | I8-98268 277-A | HOSE; OIL COOLER RETURN | 1 | 1802- | TRAGA | |||
| 400 | I8-94315 336-1 | NIPPLE; VAC PUMP,OIL | 1 | 1802- | TRAGA | M14X25 | ||
| 046 | I5-09675 018-1 | BOLT; JOINT,OIL FEED PIPE,VAC PUMP | 1 | 1802- | TRAGA | M8X20 EYE-BOLT | ||
| 070 | I8-94362 672-1 | GASKET; OIL PIPE,TURBOCHARGER | 1 | 1802- | TRAGA | |||
| 308 | I8-98268 276-A | HOSE; OIL COOLER FEED | 1 | 1802- | TRAGA | |||
| 047 | I9-09571 410-0 | GASKET; OIL PIPE | 2 | 1802- | TRAGA | (B) ID=10.2 OD=16.0 | ||
| 057 | I8-94469 992-2 | PIPE; OIL,OIL JET | 1 | 1802- | TRAGA | |||
| 047 | I9-09571 408-0 | GASKET; OIL PIPE | 2 | 1802- | TRAGA | (A) ID= 8.2 OD=14.0 T=1.0 | ||
| 330 | I8-98270 559-A | HOSE; VAC PUMP,RETURN | 1 | 1802- | TRAGA | |||
| 027 | I0-28050 616-0 | BOLT; OIL PIPE FIX | 2 | 1802- | TRAGA | M6X16 FLANGE | ||
| 313 | I0-28050 610-0 | BOLT; PIPE BRKT | 1 | 1802- | TRAGA | M6X10 FLANGE | ||
| 063 | I8-98235 430-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 1802- | TRAGA | |||
| 029 | I0-50640 625-0 | BOLT; OIL PIPE,OIL JET | 4 | 1802- | TRAGA | (B) M6X2 5 W/LK&PL WASHER | ||
| 065 | I8-98037 824-0 | BOLT; JOINT,OIL PIPE | 1 | 1802- | TRAGA | M10X23 | ||
| 028 | I8-97045 326-1 | GASKET; OIL PIPE | 1 | 1802- | TRAGA | (B) | ||
| 058 | I8-97311 976-1 | VALVE; RELIEF,OIL JET,PISTON COOLING | 1 | 1802- | TRAGA | |||
| 307 | I8-97264 168-0 | GASKET; WATER PIPE | 1 | 1802- | TRAGA |
