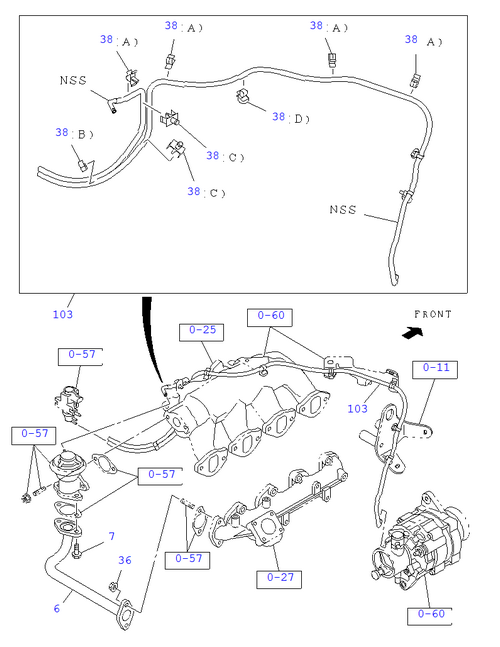

0-56 | EMISSION SYSTEM
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 007 | I0-28050 820-0 | BOLT; BRKT,EGR PIPE | 2 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 036 | I0-91180 208-0 | NUT; EGR PIPE | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 006 | I8-98270 895-A | PIPE; EGR | 1 | 1802- | TRAGA | |||
| 038 | I8-97378 707-0 | CLIP; VAC HOSE | 1 | 1802- | TRAGA | (D) L=14 0 | ||
| 038 | I5-09707 053-0 | CLIP; VAC HOSE | 4 | 1802- | TRAGA | (A) ID=7 | ||
| 038 | I8-97249 908-0 | CLIP; VAC HOSE | 2 | 1802- | TRAGA | (C) ID=8 & 8 | ||
| 103 | I8-98268 190-2 | HOSE; VAC,EGR | 1 | 1802- | TRAGA | |||
| 038 | I8-97022 016-0 | CLIP; VAC HOSE | 1 | 1802- | TRAGA | (B) ID=6.8X2 |
