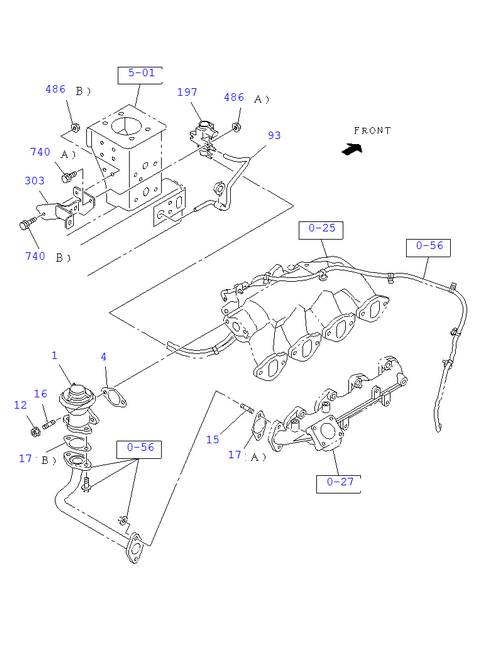

0-57 | EMISSION PIPING
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 093 | I8-98288 841-A | HOSE ASM | 1 | 1802- | TRAGA | |||
| 017 | I8-97942 749-0 | GASKET; EGR PIPE | 1 | 1802- | TRAGA | (B) | ||
| 012 | I0-91180 208-0 | NUT; EGR VLV | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 197 | I8-98302 319-1 | VALVE; VAC SWITCHING | 1 | 1802- | TRAGA | |||
| 740 | I0-28650 825-0 | BOLT; VAC REG VALVE | 1 | 1802- | TRAGA | (B) M8X2 5 FLANGE | ||
| 486 | I0-91180 106-0 | NUT; BRKT | 2 | 1802- | TRAGA | (A) M6 FLANGE | ||
| 017 | I8-97192 765-0 | GASKET; EGR PIPE | 1 | 1802- | TRAGA | (A) | ||
| 001 | I8-97349 435-1 | VALVE; EGR | 1 | 1802- | TRAGA | |||
| 015 | I8-97378 062-0 | STUD; EGR PIPE | 2 | 1802- | TRAGA | M8X25 L=36 | ||
| 004 | I8-97942 749-0 | GASKET; EGR VLV | 1 | 1802- | TRAGA | |||
| 740 | I0-28650 620-0 | BOLT; VAC REG VALVE | 2 | 1802- | TRAGA | (A) M6X2 0 FLANGE | ||
| 016 | I8-97378 060-0 | STUD; EGR VLV | 2 | 1802- | TRAGA | M8X20 L=31 | ||
| 303 | I8-98258 967-A | BRACKET; VAC SW | 1 | 1802- | TRAGA | |||
| 486 | I0-91180 108-0 | NUT; BRKT | 1 | 1802- | TRAGA | (B) M8 FLANGE |
