0-60 | ENGINE ELECTRICAL CONTROL PARTS
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

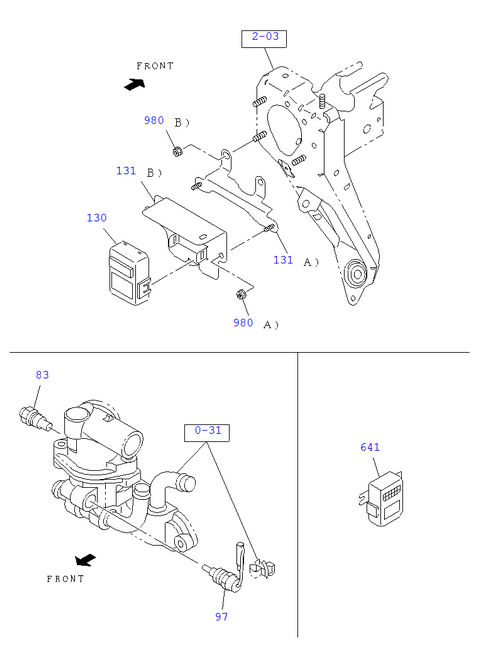

| 131 | I8-98259 124-A | BRACKET; EGR | 1 | 1802- | TRAGA | (B) | ||
| 641 | I8-97361 317-3 | TIMER; QOS | 1 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 083 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 1802- | TRAGA | |||

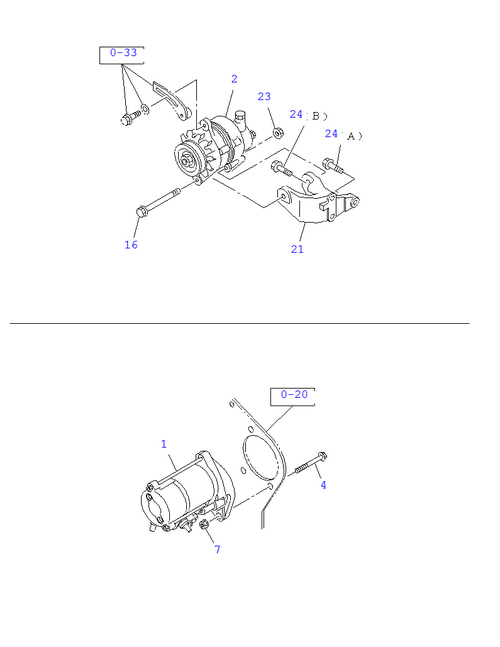

| 001 | I8-97957 512-A | STARTER ASM | 1 | 1802- | TRAGA | 12V 2.0KW | ||
| 131 | I8-98259 123-A | BRACKET; EGR | 1 | 1802- | TRAGA | (A) | ||
| 980 | I8-94279 050-0 | NUT; CONT UNIT | 1 | 1802- | TRAGA | (B) M8 W/LK WASHER | ||
| 024 | I0-50541 070-0 | BOLT; GEN BRKT | 2 | 1802- | TRAGA | (B) M10X70 W/LK WASHER | ||
| 130 | I8-98268 425-0 | CONTROLLER; EGR | 1 | 1802- | TRAGA | |||

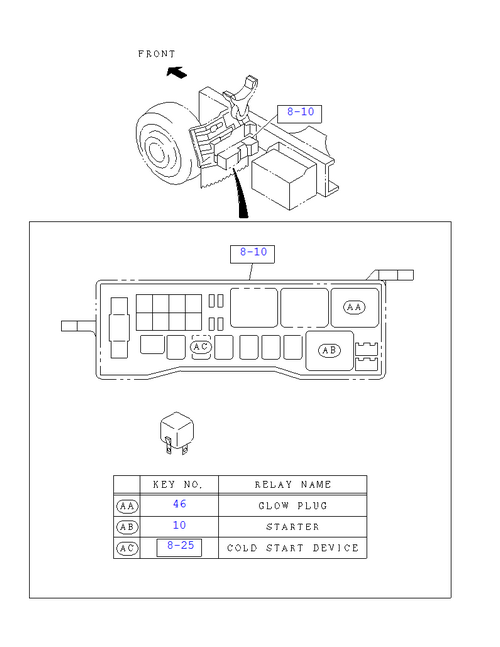

| 046 | I8-97173 951-0 | RELAY; GLOW PLUG | 1 | 1802- | TRAGA | 12V 80A | ||

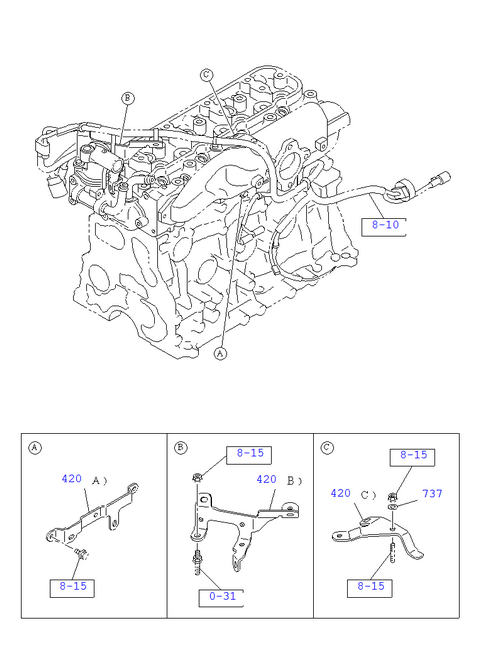

| 420 | I8-98272 517-A | BRACKET; HARNESS | 1 | 1802- | TRAGA | (C) | ||
| 010 | I8-97173 951-0 | RELAY; STARTER | 1 | 1802- | TRAGA | 12V 80A | ||
| 420 | I8-98268 267-A | BRACKET; HARNESS | 1 | 1802- | TRAGA | (B) | ||
| 395 | I0-91111 512-0 | NUT; BRKT FIX | 1 | 1802- | TRAGA | M12 | ||
| 002 | I6-97245 850-0 | GENERATOR ASM | 1 | 1802- | 12V 60A (IADG) | |||
| 083 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 1802- | TRAGA | YAZAKI | ||
| 980 | I0-91180 206-0 | NUT; CONT UNIT | 2 | 1802- | TRAGA | (A) M6 FLANGE | ||
| 420 | I8-98240 704-A | BRACKET; HARNESS | 1 | 1802- | TRAGA | (A) | ||
| 641 | I8-98315 125-0 | TIMER; QOS | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 023 | I7-05110 010-A | NUT; GEN | 1 | 1802- | TRAGA | M10 FLANGE | ||
| 016 | I0-28056 013-0 | BOLT; GEN | 1 | 1802- | TRAGA | M10X13 0 FLANGE | ||
| 737 | I0-91614 608-0 | WASHER; PL | 1 | 1802- | TRAGA | ID= 8.4 OD=18 | ||
| 024 | I0-50541 035-0 | BOLT; GEN BRKT | 1 | 1802- | TRAGA | (A) M10X35 W/LK WASHER | ||
| 004 | I0-28051 270-0 | BOLT; STARTER | 2 | 1802- | TRAGA | M12X70 FLANGE | ||
| 007 | I0-91180 112-0 | NUT; STARTER | 2 | 1802- | TRAGA | M12 FLANGE | ||
| 021 | I8-97912 659-0 | BRACKET; GEN | 1 | 1802- | TRAGA | |||
| 393 | I8-97262 964-0 | BRACKET; HARNESS TO BODY | 1 | 1802- | TRAGA | |||
| 002 | I8-97245 850-2 | GENERATOR ASM | 1 | 1802- | TRAGA | 12V 60A | ||
| 097 | I8-94457 511-0 | SWITCH; THERMO,EGR CONT | 1 | 1802- | TRAGA |
