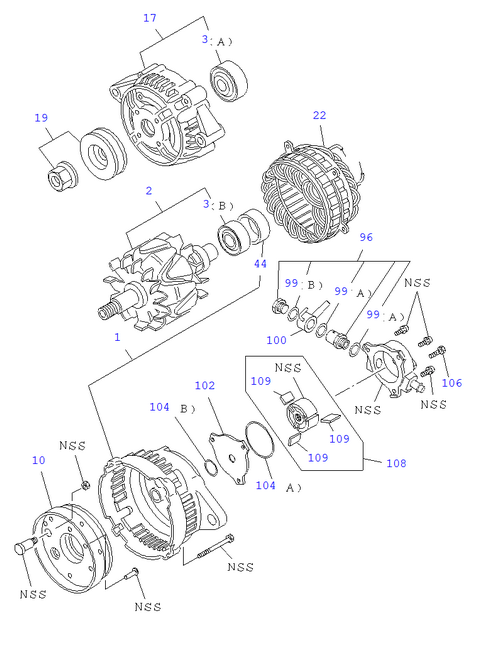

| 001 |
I8-98232 047-0 |
|
COVER ASM; RR,GEN |
1 |
|
|
|
|
| 003 |
I8-97062 654-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) |
| 099 |
I5-19679 003-0 |
|
GASKET; VAC PUMP |
1 |
|
|
|
(B) ID=12 OD=24 |
| 010 |
I8-98232 051-0 |
|
RECTIFIER; GEN |
1 |
|
|
|
|
| 102 |
I8-97330 936-0 |
|
COVER; FRT,VAC PUMP |
1 |
|
|
|
|

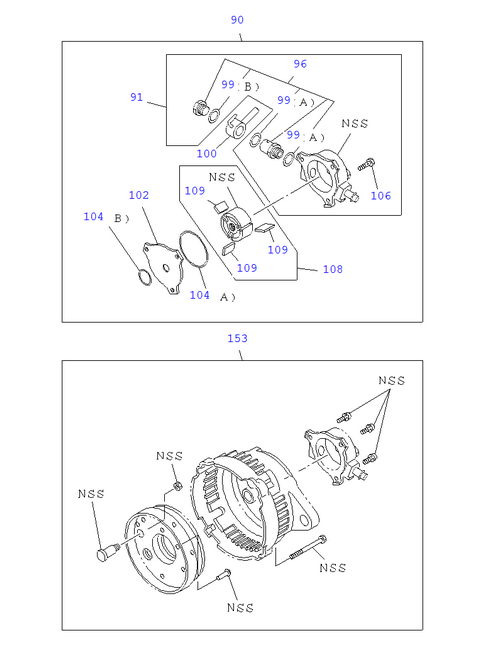

| 090 |
I8-97381 613-0 |
|
PUMP ASM; VAC,GEN |
1 |
|
|
|
|
| 044 |
I8-97941 674-0 |
|
SEAL; RR COVER,GEN |
1 |
|
|
|
|
| 104 |
I8-97941 675-0 |
|
GASKET; FRT COVER,VAC PUMP |
1 |
|
|
|
(B) |
| 099 |
I5-19679 002-0 |
|
GASKET; VAC PUMP |
2 |
|
|
|
(A) ID=18 OD=24 |
| 100 |
I8-97381 615-0 |
|
CONNECTOR; VAC PUMP |
1 |
|
|
|
|
| 022 |
I8-97381 612-0 |
|
STATOR; GEN |
1 |
|
|
|
|
| 109 |
I8-94462 883-0 |
|
VANE; VAC PUMP |
3 |
|
|
|
|
| 002 |
I8-97381 607-0 |
|
ROTOR; GEN |
1 |
|
|
|
|
| 091 |
I8-97330 937-0 |
|
BODY; VAC PUMP |
1 |
|
|
|
|
| 022 |
I8-97313 437-0 |
|
8-97381-612-0 STATOR; GEN |
1 |
|
|
|
|
| 104 |
I8-94223 994-0 |
|
GASKET; FRT COVER,VAC PUMP |
1 |
|
|
|
(A) |
| 017 |
I8-97313 446-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
|
|
| 106 |
I8-97381 614-0 |
|
BOLT; OIL CONN,VAC PUMP |
1 |
|
|
|
|
| 153 |
I8-97941 562-0 |
|
SCREW KIT; GENERATOR |
1 |
|
|
|
|
| 096 |
I8-97330 948-0 |
|
VALVE ASM; VAC PUMP |
1 |
|
|
|
|
| 003 |
I8-97062 654-A |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) (IADG) |
| 019 |
I8-97381 612-0 |
|
PULLEY; GEN |
1 |
|
|
|
|
| 108 |
I8-97330 935-0 |
|
ROTOR; VAC PUMP |
1 |
|
|
|
|
| 003 |
I8-97062 744-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(B) |
