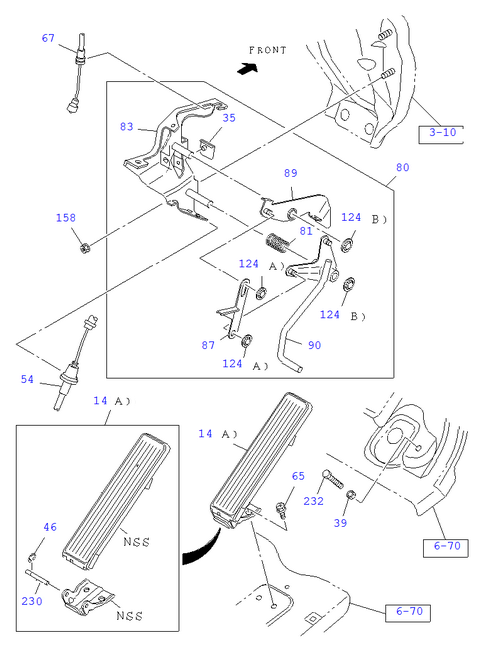

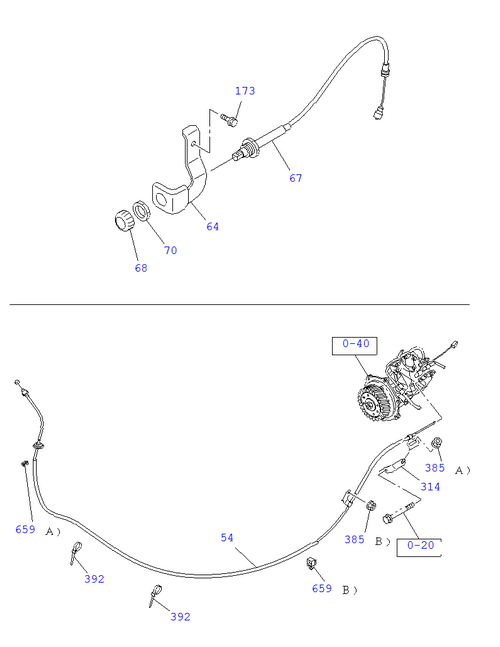

1-01 | ACCELERATOR PEDAL AND CONTROL
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 173 | I0-28650 616-0 | BOLT; IDLE CONT BRKT | 1 | 1802- | TRAGA | SWITCH HIGH IDLE ENGINE SPEED CONTROL; M6X16 FLANGE | ||
| 083 | I8-97853 201-4 | BRACKET; CONT LINK | 1 | 1802- | TRAGA | |||
| 054 | I8-98240 669-A | CABLE; ENG CONT | 1 | 1802- | TRAGA | |||
| 080 | I8-97853 057-9 | LINK ASM; ENG CONT | 1 | 1802- | TRAGA | |||
| 392 | I5-09707 031-1 | CLIP; ACCEL CONT CABLE | 2 | 1802- | TRAGA | L=140 | ||
| 158 | I8-94279 060-0 | NUT; BRKT | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 068 | I8-97853 765-1 | KNOB; IDLE CONT | 1 | 1802- | TRAGA | SWITCH HIGH IDLE ENGINE SPEED CONTROL | ||
| 090 | I8-97868 039-0 | LEVER; RELAY,ENG CONT | 1 | 1802- | TRAGA | |||
| 314 | I8-98245 801-A | BRACKET; ACCEL CABLE | 1 | 1802- | TRAGA | |||
| 089 | I8-97868 042-0 | LEVER; RELAY | 1 | 1802- | TRAGA | |||
| 232 | I8-97378 461-0 | BOLT; STOPPER,ACCEL PEDAL | 1 | 1802- | TRAGA | M8X45 | ||
| 070 | I8-97853 233-0 | NUT; CONT CABLE | 1 | 1802- | TRAGA | SWITCH HIGH IDLE ENGINE SPEED CONTROL; M18 | ||
| 659 | I8-97040 812-0 | CLIP; ACCEL CONT CABLE | 1 | 1802- | TRAGA | (B) ID=16 | ||
| 014 | I8-97853 061-A | PEDAL ASM, ACCEL | 1 | 1802- | TRAGA | (A) | ||
| 035 | I8-97302 305-0 | STOPPER; ACCEL PEDAL | 1 | 1802- | TRAGA | |||
| 064 | I8-98261 263-A | BRACKET; ENG CONT CABLE | 1 | 1802- | TRAGA | SWITCH HIGH IDLE ENGINE SPEED CONTROL | ||
| 046 | I0-91805 504-0 | RING; SNAP,ACCEL CONT PEDAL | 1 | 1802- | TRAGA | ID=4 | ||
| 067 | I8-98259 598-A | CABLE ASM; IDLE CONT | 1 | 1802- | TRAGA | SWITCH HIGH IDLE ENGINE SPEED CONTROL | ||
| 081 | I8-97853 205-1 | SPRING; RETURN,ENG CONT LEVER | 1 | 1802- | TRAGA | |||
| 385 | I0-91180 106-0 | NUT; CLIP | 1 | 1802- | TRAGA | (A) M6 FLANGE | ||
| 124 | I8-94279 042-0 | NUT; LEVER | 2 | 1802- | TRAGA | (A) ID=4.9 PUSH NUT | ||
| 124 | I8-97022 566-0 | NUT; LEVER | 2 | 1802- | TRAGA | (B) ID= 9.9 PUSH NUT | ||
| 659 | I5-09707 027-0 | CLIP; ACCEL CONT CABLE | 1 | 1802- | TRAGA | (A) ID= 9 | ||
| 039 | I0-91110 508-0 | NUT; ACCEL PEDAL STOPPER | 1 | 1802- | TRAGA | M8 | ||
| 385 | I0-91180 108-0 | NUT; CLIP | 1 | 1802- | TRAGA | (B) M8 FLANGE | ||
| 065 | I8-94310 730-0 | BOLT | 2 | 1802- | TRAGA | M8X16 W/LK&PL WASHER | ||
| 087 | I8-97853 204-1 | LINK; ENG CONT | 1 | 1802- | TRAGA |
