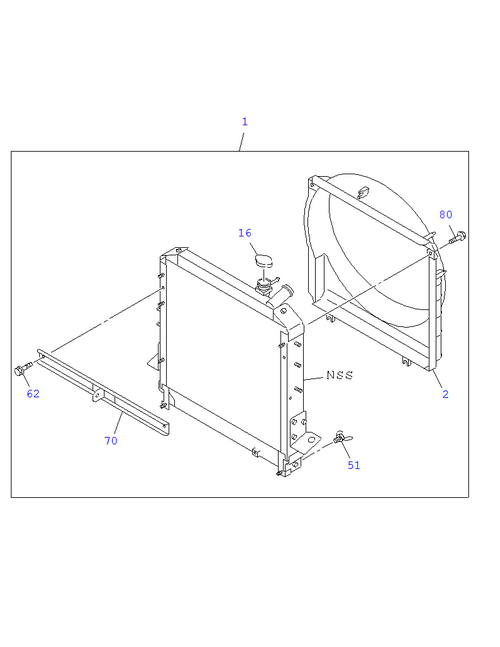

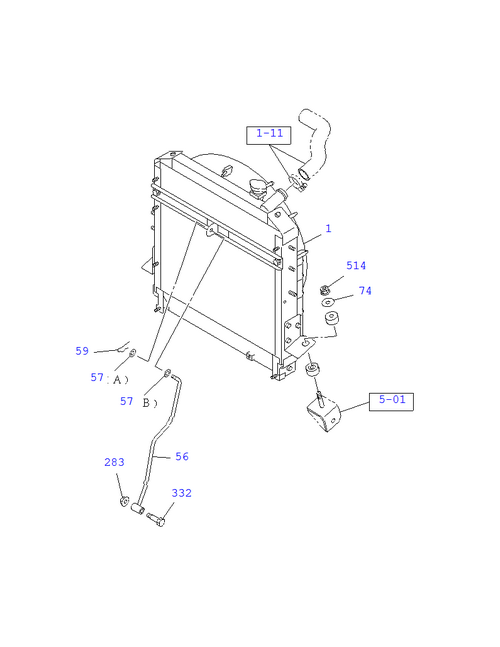

1-10 | RADIATOR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 074 | I8-97359 049-1 | WASHER; PL,CUSHION RUBBER | 2 | 1802- | TRAGA | ID=8.5 OD=3 6 | ||
| 065 | I8-94249 347-A | INSULATOR; RAD | 2 | 1802- | TRAGA | (B) | ||
| 514 | I0-91180 108-0 | NUT; RAD | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 065 | I8-94249 346-A | INSULATOR; RAD | 2 | 1802- | TRAGA | (A) | ||
| 001 | I8-98240 545-A | RADIATOR ASM | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 057 | I0-91610 510-0 | WASHER; PL,STAY | 1 | 1802- | TRAGA | (A) ID=10.5 | ||
| 016 | I8-98376 325-A | CAP; RAD | 1 | 1802- | TRAGA | |||
| 057 | I8-97011 676-0 | WASHER; PL,STAY | 1 | 1802- | TRAGA | (B) ID=12 | ||
| 283 | I8-97581 233-0 | NUT; BRKT | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 001 | I8-98336 340-A | RADIATOR ASM | 1 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 059 | I8-97359 052-0 | PIN; SNAP,STAY | 1 | 1802- | TRAGA | L=32 . 6 | ||
| 332 | I8-94401 350-0 | BOLT; BRKT,RAD STAY | 1 | 1802- | TRAGA | M8X45 | ||
| 056 | I8-98240 554-A | STAY; RAD | 1 | 1802- | TRAGA |
