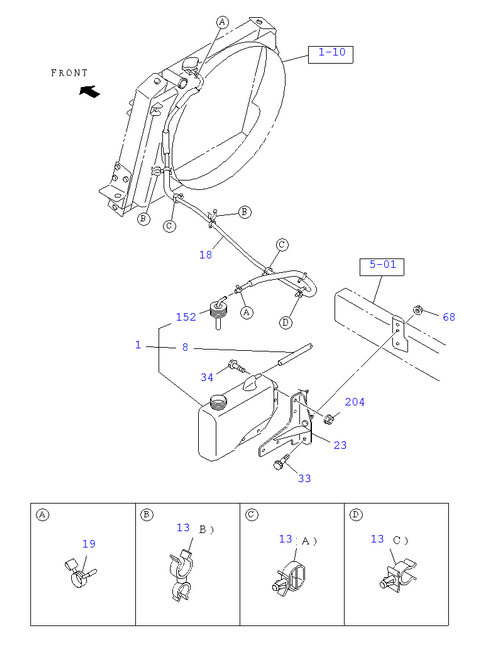

1-11 | RADIATOR HOSE AND SUB TANK
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I8-98240 548-A | BRACKET; RESERVE TANK | 1 | 1802- | TRAGA | |||
| 068 | I0-91180 108-0 | NUT; BRKT | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 001 | I8-98312 690-0 | TANK; SURGE,RAD | 1 | 1802- | TRAGA | |||
| 018 | I8-98240 580-A | HOSE; RAD TO SURGE TANK | 1 | 1802- | TRAGA | |||
| 034 | I1-09030 042-0 | BOLT; RESERVE TANK | 4 | 1802- | TRAGA | M8X22 W/LK&PL WASHER | ||
| 019 | I8-98150 358-0 | CLIP; HOSE,SURGE TANK | 2 | 1802- | TRAGA | ID=12 | ||

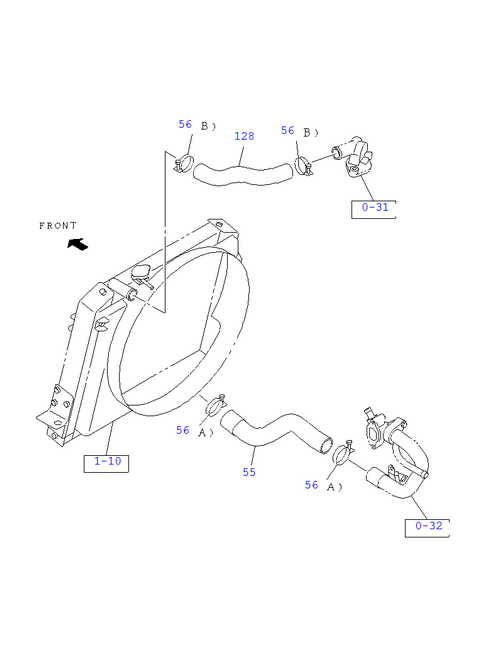

| 128 | I8-98240 543-A | HOSE; WATER,RAD INL | 1 | 1802- | TRAGA | |||
| 013 | I8-94400 865-0 | CLIP; HOSE,SURGE TANK | 2 | 1802- | TRAGA | (B) ID=12 & 16.5 | ||
| 055 | I8-98240 544-A | HOSE; WATER,RAD OUTLET | 1 | 1802- | TRAGA | |||
| 152 | I8-97217 799-0 | CAP ASM; SURGE TANK | 1 | 1802- | TRAGA | |||
| 008 | I1-09366 179-0 | HOSE; VINYL | 1 | 1802- | TRAGA | L=500 | ||
| 013 | I8-98029 256-0 | CLIP; HOSE,SURGE TANK | 2 | 1802- | TRAGA | (C) ID=12 | ||
| 033 | I0-28650 825-0 | BOLT; BRKT | 1 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 056 | I8-98133 958-0 | CLIP; WATER HOSE,RAD | 2 | 1802- | TRAGA | (B) ID=42 | ||
| 204 | I0-91180 108-0 | NUT; RESERVE TANK | 4 | 1802- | TRAGA | M8 FLANGE | ||
| 056 | I8-98133 956-0 | CLIP; WATER HOSE,RAD | 2 | 1802- | TRAGA | (A) ID=4 8 | ||
| 013 | I1-09709 290-0 | CLIP; HOSE,SURGE TANK | 2 | 1802- | TRAGA | (A) ID=13-18 L=14.5 |
