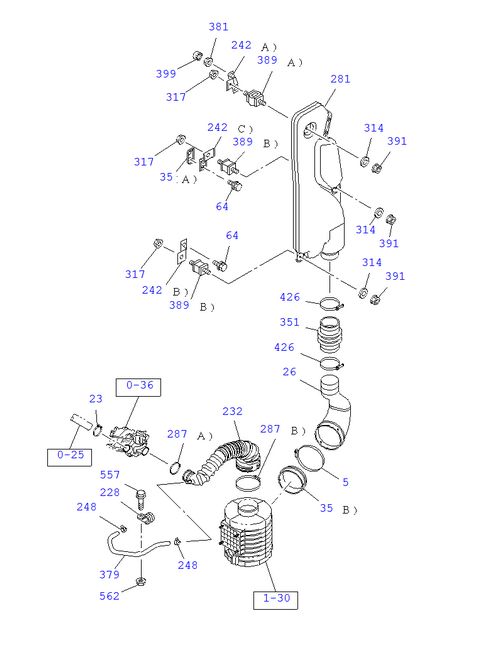

1-31 | AIR DUCT
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 242 | I8-98258 975-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (C) | ||
| 242 | I8-98258 973-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (A) | ||
| 228 | I8-98120 916-0 | CLIP; PCV HOSE | 1 | 1802- | TRAGA | ID=22 L=2 2 | ||
| 426 | I9-09915 733-1 | CLIP; DUCT | 2 | 1802- | TRAGA | ID=95 | ||
| 064 | I8-94279 207-0 | BOLT; BRKT,AIR DUCT | 3 | 1802- | TRAGA | M8X20.5 W/LK&PL WASHER | ||
| 287 | I8-98133 366-0 | CLIP; AIR DUCT | 1 | 1802- | TRAGA | (B) ID=10 0-12 0 | ||
| 287 | I8-98133 348-0 | CLIP; AIR DUCT | 1 | 1802- | TRAGA | (A) ID=4 5-65 | ||
| 379 | I8-98259 087-A | HOSE; RUBBER | 1 | 1802- | TRAGA | |||
| 281 | I8-98258 970-A | DUCT; AIR,VERTICAL INT | 1 | 1802- | TRAGA | |||
| 026 | I8-98258 971-A | DUCT; AIR INT | 1 | 1802- | TRAGA | |||
| 023 | I8-98133 347-0 | CLIP; HOSE | 1 | 1802- | TRAGA | ID=4 0-50 | ||
| 391 | I0-91180 108-0 | NUT; SUPPORT RUBBER,UPR | 3 | 1802- | TRAGA | M8 FLANGE | ||
| 562 | I0-91180 106-0 | NUT; HOSE CLIP | 1 | 1802- | TRAGA | M6 FLANGE | ||
| 389 | I8-97081 886-A | RUBBER; SUPPORT,AIR INT UPR | 2 | 1802- | TRAGA | (B) | ||
| 351 | I8-98259 086-A | DUCT; AIR | 1 | 1802- | TRAGA | |||
| 035 | I8-98336 039-0 | SEAL; DUCT,INT | 1 | 1802- | TRAGA | (B) | ||
| 005 | I8-98133 360-0 | CLIP; AIR DUCT | 1 | 1802- | TRAGA | ID=13 0-15 0 | ||
| 314 | I0-91614 810-0 | WASHER; PL,AIR INT DUCT | 3 | 1802- | TRAGA | ID=10.5 OD=32 | ||
| 381 | I1-09984 141-0 | NUT; BRKT,AIR DUCT | 2 | 1802- | TRAGA | M6 FLANGE | ||
| 399 | I8-94273 605-0 | CAP; BRKT,AIR DUCT | 2 | 1802- | TRAGA | |||
| 232 | I8-98258 972-A | HOSE; CONN | 1 | 1802- | TRAGA | |||
| 389 | I8-97080 149-A | RUBBER; SUPPORT,AIR INT UPR | 1 | 1802- | TRAGA | (A) | ||
| 317 | I0-91180 108-0 | NUT; CUSHION RUBBER | 3 | 1802- | TRAGA | M8 FLANGE | ||
| 035 | I8-97853 699-2 | SEAL; DUCT,INT | 1 | 1802- | TRAGA | (A) | ||
| 242 | I8-98258 974-A | BRACKET; AIR DUCT | 1 | 1802- | TRAGA | (B) | ||
| 557 | I0-28050 620-0 | BOLT; HOSE CLIP | 1 | 1802- | TRAGA | M6X20 FLANGE | ||
| 248 | I8-98150 355-0 | CLIP; RUBBER HOSE | 2 | 1802- | TRAGA | ID=2 0.4 |
