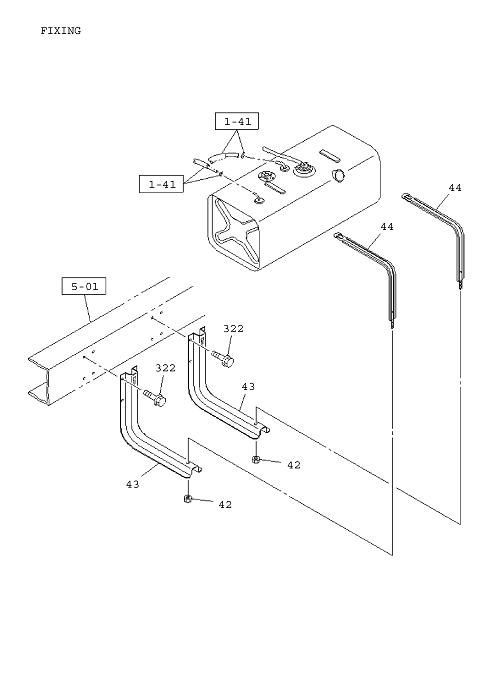

| 043 |
I8-98259 752-A |
|
BRACKET; FUEL TANK |
2 |
1802- |
|
TRAGA |
|
| 011 |
I0-28651 425-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
1802- |
|
TRAGA |
M14X2 5 FLANGE |
| 006 |
I0-36220 512-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
1802- |
|
TRAGA |
M5X12 W/LK WASHER |
| 042 |
I0-91110 508-0 |
|
NUT; SUPPORT BELT |
4 |
1802- |
|
TRAGA |
M8 |
| 044 |
I8-98259 753-A |
|
BAND; FUEL TANK |
2 |
1802- |
|
TRAGA |
|
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
1802- |
|
TRAGA |
|

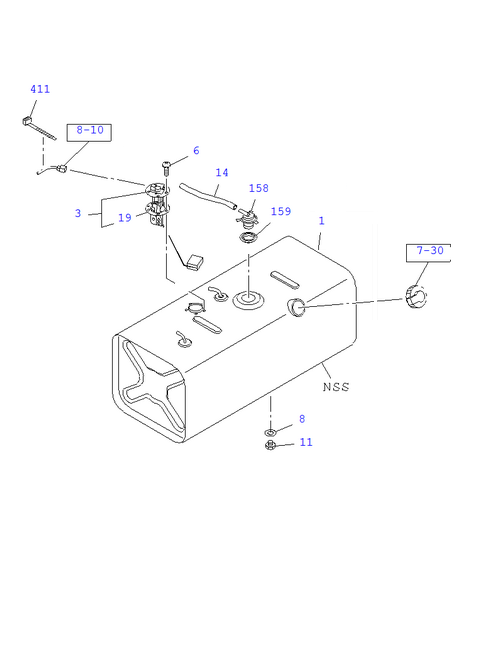

| 001 |
I8-98249 434-A |
|
TANK; FUEL |
1 |
1802- |
|
TRAGA |
720X310X275 50L |
| 003 |
I8-98064 991-0 |
|
UNIT; FUEL TANK,SUB |
1 |
1802- |
|
TRAGA |
|
| 008 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
1802- |
|
TRAGA |
ID=14.2 OD=23.0 |
| 159 |
I8-97326 488-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
1 |
1802- |
|
TRAGA |
|
| 322 |
I0-28661 030-0 |
|
BOLT; BRKT FIX |
8 |
1802- |
|
TRAGA |
M10X3 0 FLANGE |
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
1802- |
|
TRAGA |
L=14 0 |
| 158 |
I8-97179 645-0 |
|
VALVE; ROLL OVER & FLOAT |
1 |
1802- |
|
TRAGA |
|
