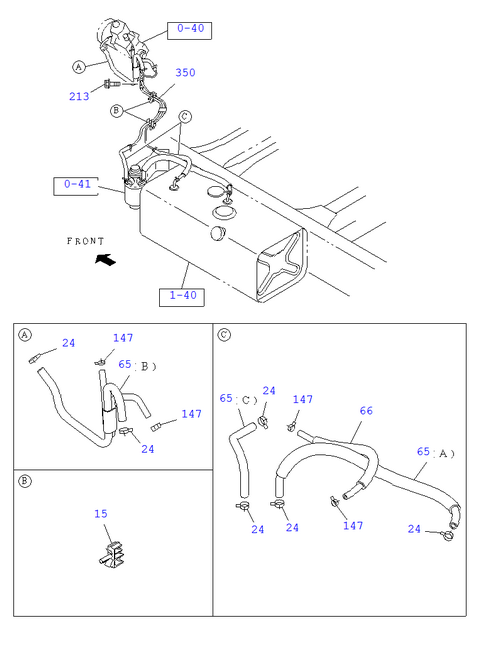

1-41 | FUEL PIPING; CHASSIS
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 065 | I8-98310 349-A | HOSE; FUEL,DELIVERY PIPE | 1 | 1802- | TRAGA | (C) | ||
| 066 | I8-98072 318-A | HOSE; FUEL,RETURN PIPE | 1 | 1802- | TRAGA | |||
| 065 | I8-98146 428-A | HOSE; FUEL,DELIVERY PIPE | 1 | 1802- | TRAGA | (A) | ||
| 213 | I0-28650 825-0 | BOLT; FUEL PIPE FIX | 1 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 024 | I8-98008 098-0 | CLIP; FUEL HOSE | 6 | 1802- | TRAGA | ID=16 | ||
| 147 | I8-98150 358-0 | CLIP; FUEL PIPE TO HOSE | 4 | 1802- | TRAGA | ID=12 | ||
| 065 | I8-98239 425-A | HOSE; FUEL,DELIVERY PIPE | 1 | 1802- | TRAGA | (B) | ||
| 015 | I8-97064 484-1 | CLIP; FUEL PIPE | 2 | 1802- | TRAGA | ID=10 & 6.4 & 4.8 | ||
| 350 | I8-98288 564-A | PIPE; FUEL,DEL & RET | 1 | 1802- | TRAGA |
