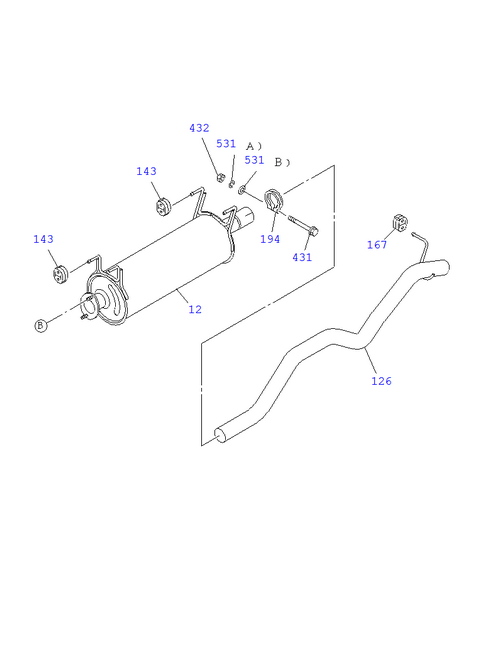

1-50 | EXHAUST PIPE AND SILENCER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 531 | I0-91614 508-0 | WASHER; CLAMP | 1 | 1802- | TRAGA | (B) ID=8.4 OD=16 | ||
| 001 | I8-98292 903-A | PIPE; EXH | 1 | 1802- | TRAGA | |||
| 194 | I8-98292 905-A | CLAMP; TAIL PIPE | 1 | 1802- | TRAGA | |||
| 126 | I8-98292 906-A | PIPE; EXH,RR | 1 | 1802- | TRAGA | |||
| 036 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 1802- | TRAGA | M10 FLANGE | ||
| 002 | I8-97381 456-0 | GASKET; PIPE TO MANIF | 1 | 1802- | TRAGA | |||
| 531 | I0-91510 508-0 | WASHER; CLAMP | 1 | 1802- | TRAGA | (A) ID=8.2 | ||
| 178 | I8-98268 402-0 | GASKET; CONV TO MANIF | 1 | 1802- | TRAGA | |||
| 211 | I8-97161 607-0 | NUT; CONV | 4 | 1802- | TRAGA | M8 FLANGE | ||
| 167 | I8-97166 498-1 | HANGER; EXH PIPE | 1 | 1802- | TRAGA | |||
| 198 | I8-98317 139-A | BRACKET; CONV MTG | 1 | 1802- | TRAGA | (C) | ||
| 432 | I0-91110 508-0 | NUT; CLAMP | 1 | 1802- | TRAGA | M8 | ||
| 198 | I8-98268 225-A | BRACKET; CONV MTG | 1 | 1802- | TRAGA | (A) | ||
| 084 | I8-94328 352-1 | GASKET; EXH PIPE | 1 | 1802- | TRAGA | ID=64.7 | ||
| 431 | I0-28050 870-0 | BOLT; CLAMP | 1 | 1802- | TRAGA | M8X70 FLANGE | ||
| 012 | I8-98292 904-A | SILENCER ASM; EXH | 1 | 1802- | TRAGA | |||
| 329 | I0-91180 110-0 | NUT; EXH PIPE TO PIPE | 2 | 1802- | TRAGA | M10 FLANGE | ||
| 198 | I8-98268 226-A | BRACKET; CONV MTG | 1 | 1802- | TRAGA | (B) | ||
| 175 | I8-98268 241-A | CONVERTER; CATALYST | 1 | 1802- | TRAGA | |||
| 541 | I8-97378 062-0 | STUD; CONV TO PIPE | 4 | 1802- | TRAGA | M8X25 L=36 | ||
| 143 | I8-97166 498-1 | RUBBER; SUPPORT | 4 | 1802- | TRAGA |
