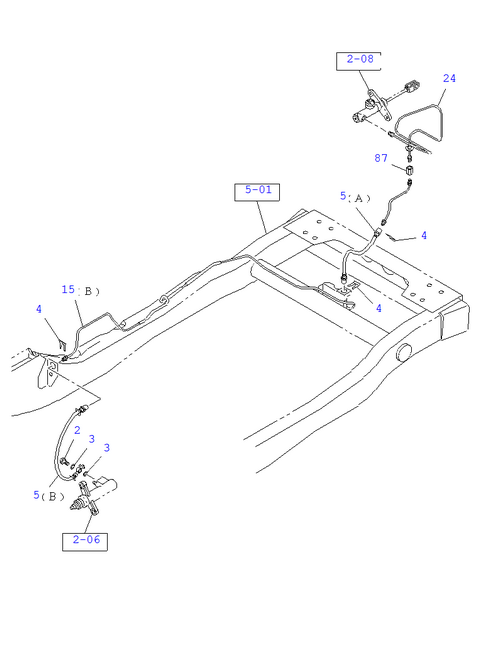

2-05 | CLUTCH PIPING
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I9-09571 410-0 | GASKET; FLEX HOSE,CLU | 2 | 1802- | TRAGA | ID=10.2 OD=16.0 | ||
| 004 | I8-97365 304-0 | CLIP; FLEX HOSE,CLU CONT | 3 | 1802- | TRAGA | |||
| 015 | I8-97035 987-A | PIPE; CLU,FLEX HOSE | 1 | 1802- | TRAGA | (A) | ||
| 005 | I8-98090 655-0 | HOSE; FLEX,CLU PIPE | 1 | 1802- | TRAGA | (A) | ||
| 087 | I0-92107 006-0 | UNION; OIL PIPE | 1 | 1802- | TRAGA | M12 STRAIGHT | ||
| 005 | I8-94443 569-1 | HOSE; FLEX,CLU PIPE | 1 | 1802- | TRAGA | (B) | ||
| 024 | I8-98259 165-A | PIPE ASM; CLU,M/CYL TO UNION | 1 | 1802- | TRAGA | |||
| 015 | I8-98238 753-A | PIPE; CLU,FLEX HOSE | 1 | 1802- | TRAGA | (B) | ||
| 002 | I8-98014 005-0 | BOLT; EYE,SLAVE CYL | 1 | 1802- | TRAGA | M10X22 |
