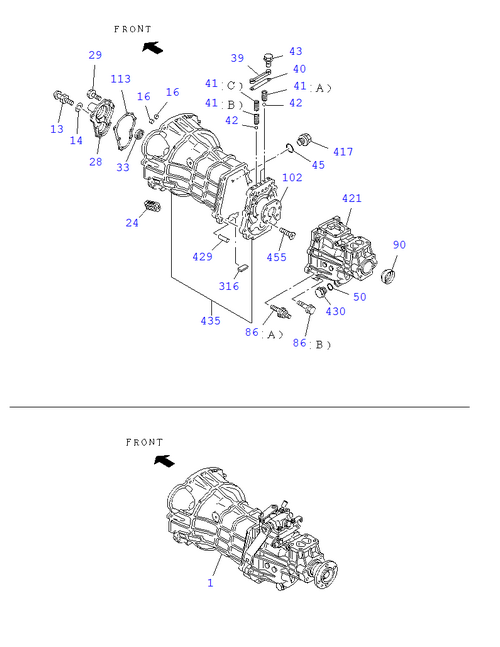

2-20 | MANUAL TRANSMISSION ASM AND CASE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1802- | TRAGA | |||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 1802- | TRAGA | ID=17 | ||
| 013 | I8-97072 827-0 | SUPPORT; SHIFT FORK | 1 | 1802- | TRAGA | L=47.5 | ||
| 024 | I6-94156 700-0 | COVER; CHECK HOLE,DUST | 1 | 1802- | TRAGA | (IADG) | ||
| 041 | I8-94320 193-0 | SPRING; DETENT BALL | 2 | 1802- | TRAGA | (A) L=26 . 8 | ||
| 102 | I8-97138 673-0 | RETAINER; BRG UPR,MAINSHAFT | 1 | 1802- | TRAGA | |||
| 086 | I8-97305 468-0 | BOLT; RR COVER | 3 | 1802- | TRAGA | (A) M10X18 M10X55 L=86.8 | ||
| 435 | I8-98277 968-0 | CASE; TRANS | 1 | 1802- | TRAGA | |||
| 029 | I8-97365 376-0 | BOLT; FRT COVER | 6 | 1802- | TRAGA | M8X2 2 FLANGE | ||
| 033 | I8-97947 839-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1802- | TRAGA | NOK | ||
| 024 | I8-94156 700-0 | COVER; CHECK HOLE,DUST | 1 | 1802- | TRAGA | |||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 1802- | TRAGA | |||
| 429 | I5-09740 018-1 | PIN; STRAIGHT | 2 | 1802- | TRAGA | OD=10 L=40 | ||
| 001 | I8-98321 859-0 | TRANSMISSION ASM; MANUAL | 1 | 1802- | TRAGA | |||
| 086 | I8-98035 672-0 | BOLT; RR COVER | 5 | 1802- | TRAGA | (B) M10X55 FLANGE | ||
| 039 | I8-98035 571-0 | PLATE; DETENT SPR | 1 | 1802- | TRAGA | |||
| 421 | I8-97978 017-1 | COVER; RR,TRANS | 1 | 1802- | TRAGA | |||
| 113 | I8-97083 589-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 1802- | TRAGA | |||
| 043 | I8-97365 376-0 | BOLT; PLATE TO PLATE | 2 | 1802- | TRAGA | M8X2 2 FLANGE | ||
| 041 | I8-97214 402-0 | SPRING; DETENT BALL | 1 | 1802- | TRAGA | (B) L=27.6 | ||
| 042 | I8-94435 335-0 | BALL; DETENT,GEAR SHIFT | 3 | 1802- | TRAGA | |||
| 028 | I8-97381 406-0 | COVER; FRT,TRANS CASE | 1 | 1802- | TRAGA | |||
| 090 | I8-97046 707-2 | SEAL; OIL,RR COVER | 1 | 1802- | TRAGA | NOK | ||
| 014 | I0-91510 512-0 | WASHER; LK,SUPPORT | 1 | 1802- | TRAGA | ID=12.2 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1802- | TRAGA | |||
| 041 | I8-97214 403-0 | SPRING; DETENT BALL | 1 | 1802- | TRAGA | (C) L=26 . 6 | ||
| 040 | I8-97083 600-1 | GASKET; DETENT SPR PLATE | 1 | 1802- | TRAGA | |||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1802- | TRAGA | ID=17 | ||
| 455 | I8-98050 437-0 | SCREW; BRG RET | 4 | 1802- | TRAGA | M8X22 | ||
| 016 | I8-97358 601-0 | PLUG; SHIFT ROD | 2 | 1802- | TRAGA | OD=14 |
