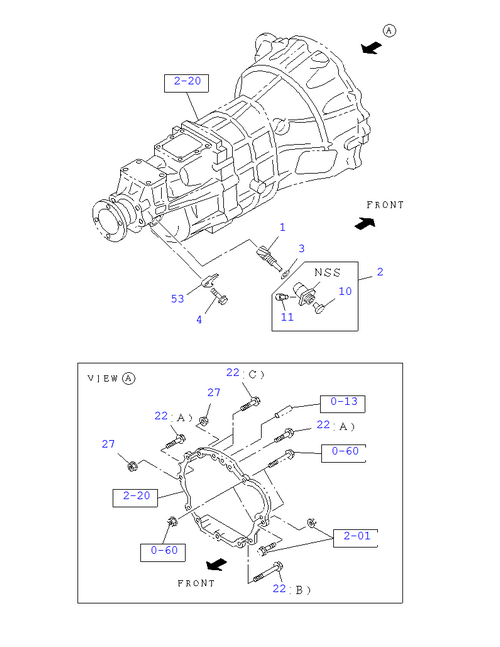

2-25 | SPEEDOMETER DRIVEN GEAR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I0-28051 060-0 | BOLT; TRANS CASE TO ENG | 2 | 1802- | TRAGA | (B) M10X6 0 FLANGE | ||
| 004 | I0-28050 820-0 | BOLT; RET,DRIVEN GEAR | 1 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 003 | I9-09921 100-0 | GASKET; BUSHING | 1 | 1802- | TRAGA | ID=21.7 OD=2 8.7 | ||
| 001 | I8-97038 412-2 | GEAR; DRIVEN,SPD | 1 | 1802- | TRAGA | Z = 15 | ||
| 022 | I0-28051 240-0 | BOLT; TRANS CASE TO ENG | 1 | 1802- | TRAGA | (C) M12X4 0 FLANGE | ||
| 053 | I8-98035 572-0 | PLATE; LOCK,DRIVEN GEAR | 1 | 1802- | TRAGA | |||
| 022 | I0-28051 040-0 | BOLT; TRANS CASE TO ENG | 4 | 1802- | TRAGA | (A) M10X4 0 FLANGE | ||
| 002 | I8-97021 133-4 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1802- | TRAGA | |||
| 027 | I0-91180 110-0 | NUT; CLU HSG TO TRANS | 2 | 1802- | TRAGA | M10 FLANGE | ||
| 011 | I8-94446 571-1 | FILTER; BUSHING,SPEEDOMETER DRIVEN GEA | 1 | 1802- | TRAGA | |||
| 010 | I8-97131 328-1 | SEAL; OIL,DRIVE GEAR | 1 | 1802- | TRAGA | NOK |
