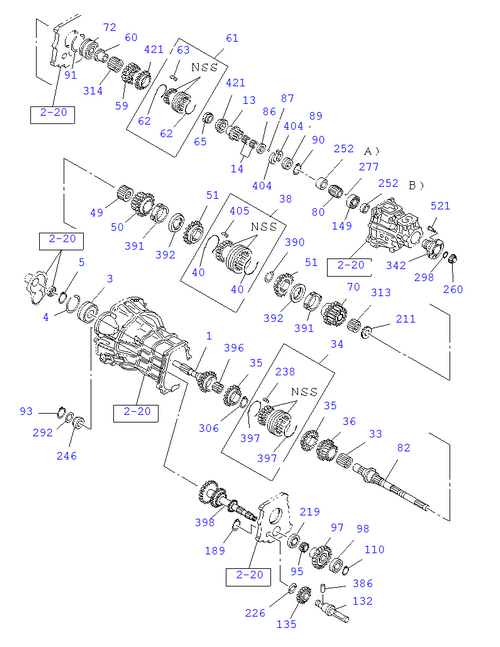

2-26 | MANUAL TRANSMISSION GEAR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 093 | I9-09180 025-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1802- | TRAGA | ID=23.2 | ||
| 306 | I8-97129 616-0 | RING; SNAP,MAINSHAFT | 1 | 1802- | TRAGA | T= 1.85 YELLOW | ||
| 390 | I8-94422 088-2 | RING; SNAP,CLU HUB | 1 | 1802- | TRAGA | T=1.80 WHITE | ||
| 398 | I8-97209 758-1 | GEAR; COUNTER | 1 | 1802- | TRAGA | Z=4 6-32-25-19 | ||
| 089 | I8-94422 395-0 | RING; RET,THRUST RING | 1 | 1802- | TRAGA | ID=31.8 | ||
| 149 | I6-94173 863-0 | BEARING; NEEDLE,MAINSHAFT,RR | 1 | 1802- | (IADG) | |||
| 049 | I9-00096 625-0 | BEARING; NEEDLE,2ND GEAR | 1 | 1802- | TRAGA | JTEKT | ||
| 004 | I8-94422 083-0 | RING; SNAP,BRG TO TOP GEAR SHAFT | 1 | 1802- | TRAGA | NSK | ||
| 035 | I8-94151 510-3 | RING; BLOCK,4TH & 3RD | 2 | 1802- | TRAGA | Z=45 | ||
| 014 | I8-98172 356-0 | BEARING; NEEDLE,5TH | 1 | 1802- | TRAGA | NTN | ||
| 135 | I8-98233 606-0 | GEAR; REV IDLER | 1 | 1802- | TRAGA | Z=33 | ||
| 060 | I8-97031 079-0 | COLLAR; REV MAIN | 1 | 1802- | TRAGA | |||
| 097 | I8-94377 434-0 | GEAR; 5TH,COUNTER | 1 | 1802- | TRAGA | Z=50 | ||
| 252 | I8-98258 865-1 | SPACER | 1 | 1802- | TRAGA | (B) | ||
| 252 | I8-98258 864-1 | SPACER | 1 | 1802- | TRAGA | (A) | ||
| 080 | I8-97038 411-1 | GEAR; SPD DRIVE | 1 | 1802- | TRAGA | Z=4 | ||
| 404 | I8-94421 892-0 | PLATE; THRUST | 4 | 1802- | TRAGA | |||
| 038 | I8-94363 059-1 | SYNCHRONIZER; LOW & 2ND | 1 | 1802- | TRAGA | |||
| 342 | I8-94377 558-2 | FLANGE; OUTPUT | 1 | 1802- | TRAGA | |||
| 132 | I8-98245 493-0 | SHAFT; REV | 1 | 1802- | TRAGA | |||
| 091 | I8-94322 411-0 | RING; SNAP,CENTER BRG,MAINSHAFT | 1 | 1802- | TRAGA | ID=76.2 | ||
| 033 | I8-94161 990-2 | BEARING; NEEDLE,3RD GEAR | 1 | 1802- | TRAGA | NSK | ||
| 110 | I8-94422 104-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.20 YELLOW | ||
| 313 | I8-94161 990-2 | BEARING; NEEDLE,LOW GEAR | 1 | 1802- | TRAGA | NSK | ||
| 051 | I6-94151 510-0 | RING BLOCKING,PT | 1 | 1802- | Z=45 (IADG) | |||
| 226 | I8-94223 069-1 | WASHER; THRUST,REV GEAR,COUNTER | 1 | 1802- | TRAGA | ID=3 0.0 | ||
| 063 | I8-98189 965-0 | INSERT; SYN,REV & 5TH | 3 | 1802- | TRAGA | |||
| 110 | I8-94422 105-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.30 BLUE | ||
| 306 | I8-97129 615-0 | RING; SNAP,MAINSHAFT | 1 | 1802- | TRAGA | T= 1.90 BLUE | ||
| 087 | I8-94201 356-0 | BALL; THRUST WASHER | 1 | 1802- | TRAGA | |||
| 391 | I8-94363 056-0 | RING; INSIDE,SYN | 2 | 1802- | TRAGA | OD=95.8 | ||
| 405 | I8-94363 062-1 | INSERT; SYN,LOW & 2ND | 3 | 1802- | TRAGA | |||
| 390 | I8-94422 090-2 | RING; SNAP,CLU HUB | 1 | 1802- | TRAGA | T= 1.90 BLUE | ||
| 001 | I8-98210 240-0 | SHAFT; TOP GEAR,TRANS | 1 | 1802- | TRAGA | Z=25 | ||
| 386 | I9-08150 640-0 | PIN; REV SHAFT | 1 | 1802- | TRAGA | OD=6 L=40 | ||
| 059 | I8-98210 228-0 | GEAR; REV MAINSHAFT | 1 | 1802- | TRAGA | Z=41 | ||
| 219 | I8-94436 929-0 | BEARING; BALL,CLUSTER,RR | 1 | 1802- | TRAGA | NSK | ||
| 189 | I8-94422 102-0 | RING; SNAP,REV,GEAR | 1 | 1802- | TRAGA | T= 1.40 BLUE | ||
| 396 | I8-98172 355-0 | BEARING; NEEDLE,MAINSHAFT | 1 | 1802- | TRAGA | NSK | ||
| 314 | I8-94422 064-0 | BEARING; NEEDLE,REV GEAR | 1 | 1802- | TRAGA | NSK | ||
| 072 | I8-97943 878-0 | BEARING; BALL,MAINSHAFT | 1 | 1802- | TRAGA | NSK | ||
| 393 | I6-94173 863-0 | BEARING; MAINSHAFT END | 1 | 1802- | (IADG) | |||
| 036 | I8-98210 249-0 | GEAR; 3RD,MAINSHAFT | 1 | 1802- | TRAGA | Z=31 | ||
| 013 | I8-98210 227-0 | GEAR; 5TH,MAINSHAFT | 1 | 1802- | TRAGA | Z=22 | ||
| 098 | I8-97018 535-1 | BEARING; BALL,COUNTER END | 1 | 1802- | TRAGA | |||
| 070 | I8-97301 182-1 | GEAR; 1ST,MAINSHAFT | 1 | 1802- | TRAGA | Z=45 | ||
| 005 | I8-97254 316-0 | RING; SNAP,BRG TO TOP GEAR SHAFT | 1 | 1802- | TRAGA | ID=3 7.4 | ||
| 260 | I8-94385 985-1 | NUT; MAINSHAFT END | 1 | 1802- | TRAGA | M2 4 | ||
| 090 | I9-09180 032-0 | RING; SNAP,THRUST RING | 1 | 1802- | TRAGA | ID=29.6 | ||
| 397 | I8-94422 075-0 | SPRING; INSERT,4TH & 3RD | 2 | 1802- | TRAGA | |||
| 061 | I8-97188 800-0 | SYNCHRONIZER; REV & 5TH | 1 | 1802- | TRAGA | |||
| 306 | I8-97129 617-0 | RING; SNAP,MAINSHAFT | 1 | 1802- | TRAGA | T= 1.80 WHITE | ||
| 086 | I8-94422 110-2 | WASHER; THRUST,5TH | 1 | 1802- | TRAGA | T= 7.90 WHITE | ||
| 421 | I8-97071 688-0 | RING; BLOCK,REV & 5TH | 2 | 1802- | TRAGA | Z=36 | ||
| 086 | I8-94422 113-2 | WASHER; THRUST,5TH | 1 | 1802- | TRAGA | T= 8.20 BLUE | ||
| 521 | I8-97062 766-0 | BOLT | 4 | 1802- | TRAGA | |||
| 110 | I8-94422 108-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.60 BROWN | ||
| 062 | I8-98189 962-0 | SPRING; INSERT,REV & 5TH | 2 | 1802- | TRAGA | |||
| 082 | I8-98258 863-1 | SHAFT; MAIN,TRANS | 1 | 1802- | TRAGA | Z=2 8-34-26-27 | ||
| 238 | I8-94448 202-2 | INSERT | 3 | 1802- | TRAGA | |||
| 050 | I8-97301 183-1 | GEAR; 2ND,MAINSHAFT | 1 | 1802- | TRAGA | Z=34 | ||
| 390 | I8-94422 089-1 | RING; SNAP,CLU HUB | 1 | 1802- | TRAGA | T= 1.85 YELLOW | ||
| 034 | I8-97188 798-0 | SYNCHRONIZER; 4TH & 3RD | 1 | 1802- | TRAGA | |||
| 314 | I8-94422 064-0 | BEARING; NEEDLE,REV GEAR | 1 | 1802- | TRAGA | JTEKT | ||
| 110 | I8-94422 103-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.10 WHITE | ||
| 003 | I8-97943 879-0 | BEARING; TOP GEAR SHAFT | 1 | 1802- | TRAGA | NSK | ||
| 211 | I8-94148 935-0 | BEARING; THRUST NEEDLE,1ST GEAR | 1 | 1802- | TRAGA | NSK | ||
| 292 | I8-94422 081-0 | RING; SNAP,BRG OUTER | 1 | 1802- | TRAGA | NSK | ||
| 392 | I8-98115 793-0 | RING; OUTSIDE,SYN | 2 | 1802- | TRAGA | OD=90.0 | ||
| 086 | I8-94422 111-2 | WASHER; THRUST,5TH | 1 | 1802- | TRAGA | T= 8.00 YELLOW | ||
| 149 | I8-94173 863-A | BEARING; NEEDLE,MAINSHAFT,RR | 1 | 1802- | TRAGA | (IADG) | ||
| 065 | I8-94422 071-1 | NUT; MAINSHAFT | 1 | 1802- | TRAGA | M3 4 | ||
| 246 | I8-97029 600-4 | BEARING; ROLLER,COUNTER SHAFT FRT | 1 | 1802- | TRAGA | NSK | ||
| 298 | I9-09561 326-0 | GASKET; MAINSHAFT | 1 | 1802- | TRAGA | |||
| 040 | I8-94448 045-0 | SPRING; INSERT,LOW & 2ND | 2 | 1802- | TRAGA | |||
| 110 | I8-94422 107-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.50 GREEN | ||
| 086 | I8-94422 112-2 | WASHER; THRUST,5TH | 1 | 1802- | TRAGA | T= 8.10 GREEN | ||
| 051 | I8-98115 804-0 | RING; BLOCK,LOW & 2ND | 2 | 1802- | TRAGA | Z=36 | ||
| 189 | I8-94422 100-0 | RING; SNAP,REV,GEAR | 1 | 1802- | TRAGA | T= 1.20 WHITE | ||
| 110 | I8-94422 106-0 | RING; SNAP,COUNTER BRG | 1 | 1802- | TRAGA | T= 1.40 PINK | ||
| 095 | I8-94377 433-0 | GEAR; REV,COUNTER | 1 | 1802- | TRAGA | Z=19 | ||
| 098 | I8-97018 535-A | BEARING; BALL,COUNTER END | 1 | 1802- | TRAGA | (IADG) | ||
| 189 | I8-94422 101-0 | RING; SNAP,REV,GEAR | 1 | 1802- | TRAGA | T= 1.30 YELLOW | ||
| 277 | I8-94201 356-0 | BALL; SPD DRIVE GEAR | 1 | 1802- | TRAGA |
