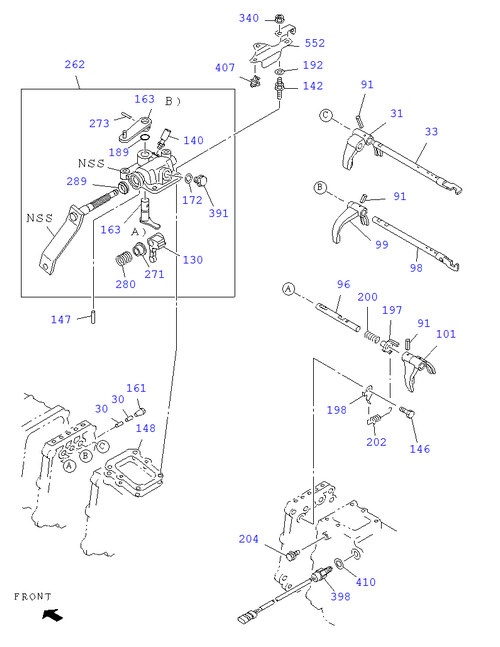

2-30 | GEAR SHIFTER AND QUADRANT BOX
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 197 | I8-94448 201-2 | INHIBITOR; REV SHIFT | 1 | 1802- | TRAGA | |||
| 398 | I8-98300 836-2 | SWITCH; REV LAMP | 1 | 1802- | TRAGA | |||
| 189 | I9-09720 511-0 | GASKET; SELECT LEVER,CONT BOX | 1 | 1802- | TRAGA | |||
| 130 | I8-98489 444-0 | LEVER; SHIFT,INTERNAL | 1 | 1802- | TRAGA | |||
| 273 | I1-09748 032-0 | PIN; SPR,STOPPER | 1 | 1802- | TRAGA | L=2 5 OD= 5 | ||
| 146 | I0-28650 820-0 | BOLT; REV INHIBITOR | 1 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 407 | I8-94232 618-0 | CLIP; SWITCH HARNESS | 1 | 1802- | TRAGA | L=112 | ||
| 091 | I8-94171 541-0 | PIN; SPR,SHIFT ARM | 3 | 1802- | TRAGA | D=4.2 L=25 | ||
| 140 | I8-98189 454-0 | BREATHER; AIR,TRANS | 1 | 1802- | TRAGA | |||
| 148 | I8-97083 599-0 | GASKET; QUAD BOX | 1 | 1802- | TRAGA | |||
| 552 | I8-98300 834-0 | BRACKET | 1 | 1802- | TRAGA | |||
| 200 | I8-94448 805-1 | SPRING; REV INHIBITOR,COMP | 1 | 1802- | TRAGA | |||
| 033 | I8-94421 915-4 | ROD; SHIFT,LOW & 2ND | 1 | 1802- | TRAGA | |||
| 031 | I8-94421 912-3 | ARM; SHIFT,LOW & 2ND | 1 | 1802- | TRAGA | |||
| 161 | I8-94239 543-1 | PLUG; INTER LK HOLE | 1 | 1802- | TRAGA | |||
| 147 | I9-08160 612-0 | PIN; KNOCK | 2 | 1802- | TRAGA | OD=6 L=12 | ||
| 202 | I8-98300 835-1 | SPRING; REV INHIBITOR,EXT | 1 | 1802- | TRAGA | |||
| 280 | I8-98300 833-1 | SPRING; COIL TENSION | 1 | 1802- | TRAGA | |||
| 101 | I8-97109 504-2 | ARM; SHIFT,REV & 5TH | 1 | 1802- | TRAGA | |||
| 192 | I0-91614 608-0 | WASHER; PL | 2 | 1802- | TRAGA | ID=8.4 OD=18 | ||
| 340 | I0-91180 108-0 | NUT; BRKT | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 030 | I5-33534 002-1 | PIN; INTER LK | 2 | 1802- | TRAGA | OD=5.5 L=10 | ||
| 289 | I8-97037 396-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1802- | TRAGA | |||
| 172 | I9-09571 414-0 | GASKET; NEUTRAL SW | 1 | 1802- | TRAGA | ID=14.2 OD=2 0 | ||
| 098 | I8-94421 914-5 | ROD; SHIFT,TOP & 3RD | 1 | 1802- | TRAGA | |||
| 142 | I8-97365 378-0 | BOLT; QUAD BOX | 4 | 1802- | TRAGA | M8X15,M8X25 L=49 | ||
| 204 | I8-98035 673-0 | STOPPER; REV INHIBITOR | 1 | 1802- | TRAGA | |||
| 391 | I8-98035 674-0 | PLUG; SW HOLE | 1 | 1802- | TRAGA | M14X11 | ||
| 262 | I8-98298 786-3 | BOX ASM; SHIFT CONT | 1 | 1802- | TRAGA | |||
| 099 | I8-94421 911-3 | ARM; SHIFT,4TH & 3RD | 1 | 1802- | TRAGA | |||
| 163 | I8-98298 788-0 | LEVER; SELECT,INTERNAL | 1 | 1802- | TRAGA | (A) 880X649X549 280L | ||
| 271 | I8-94257 234-1 | BUSHING; QUAD BOX | 1 | 1802- | TRAGA | |||
| 198 | I8-94448 199-0 | BRACKET; REV INHIBITOR | 1 | 1802- | TRAGA | |||
| 096 | I8-97232 886-0 | ROD; SHIFT,5TH | 1 | 1802- | TRAGA | |||
| 410 | I9-09571 414-0 | GASKET; REV SW | 1 | 1802- | TRAGA | ID=14.2 OD=2 0 | ||
| 163 | I8-98304 578-1 | LEVER; SELECT,INTERNAL | 1 | 1802- | TRAGA | (B) |
