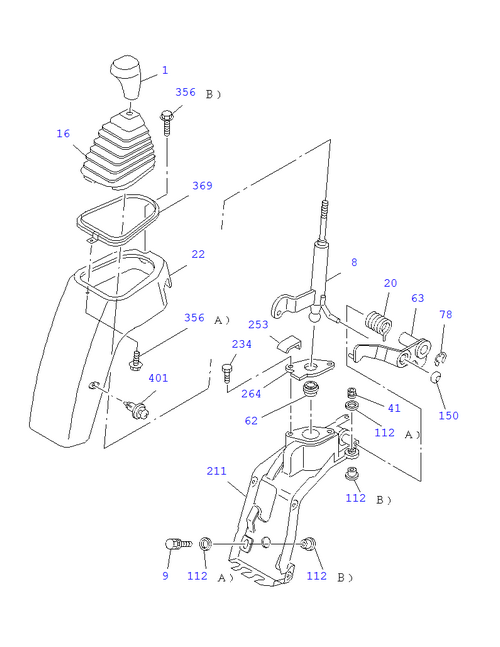

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 401 | I8-97466 767-0 | CLIP; COVER | 3 | 1802- | TRAGA | GRAY | ||
| 253 | I8-97204 510-0 | STOPPER; CHANGE LEVER | 1 | 1802- | TRAGA | |||
| 112 | I8-97091 427-0 | RUBBER; CUSHION | 4 | 1802- | TRAGA | (B) | ||
| 063 | I8-97143 199-0 | LEVER; RELAY,SELECT | 1 | 1802- | TRAGA | |||
| 150 | I8-97049 147-0 | BALL; DETENT,CONT LEVER | 1 | 1802- | TRAGA | |||
| 008 | I8-97204 506-0 | LEVER; CHANGE | 1 | 1802- | TRAGA | |||
| 078 | I0-91805 510-0 | RING; SNAP,CHANGE LEVER | 1 | 1802- | TRAGA | ID=10 | ||
| 020 | I8-97204 514-1 | SPRING; CHANGE LEVER | 1 | 1802- | TRAGA | |||
| 112 | I8-97091 426-0 | RUBBER; CUSHION | 4 | 1802- | TRAGA | (A) | ||
| 001 | I8-97196 285-1 | KNOB; CHANGE LEVER | 1 | 1802- | TRAGA | BLACK | ||
| 009 | I0-50640 828-0 | BOLT; CHANGE LEVER | 2 | 1802- | TRAGA | M8X2 8 W/LK&PL WASHER | ||
| 016 | I8-97066 287-2 | BOOT; CHANGE LEVER | 1 | 1802- | TRAGA | |||
| 234 | I1-33739 842-0 | BOLT; BRKT | 2 | 1802- | TRAGA | M6X12 FLANGE | ||
| 356 | I0-74160 514-0 | SCREW; COVER | 1 | 1802- | TRAGA | (A) M5X14 TAPPING W/PL WASHER | ||
| 264 | I8-97204 511-0 | PLATE; COVER | 1 | 1802- | TRAGA | |||
| 062 | I8-97011 895-1 | SEAT; BALL,CHANGE LEVER | 1 | 1802- | TRAGA | |||
| 369 | I8-97066 288-1 | RETAINER; REINF | 1 | 1802- | TRAGA | |||
| 022 | I8-97466 844-1 | COVER; DUST,CHANGE LEVER | 1 | 1802- | TRAGA | GRAY | ||
| 356 | I0-38050 612-0 | SCREW; COVER | 1 | 1802- | TRAGA | (B) T2 5 M6X12 HEXALOBULAR SOCKET | ||
| 041 | I8-97329 625-0 | NUT; CHANGE LEVER | 2 | 1802- | TRAGA | M8 W/DISHED WASHER | ||
| 211 | I8-97204 505-2 | BRACKET; CHANGE LEVER | 1 | 1802- | TRAGA |
