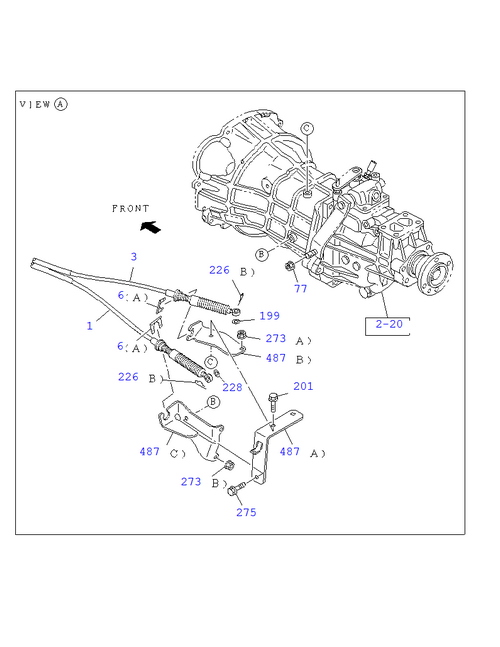

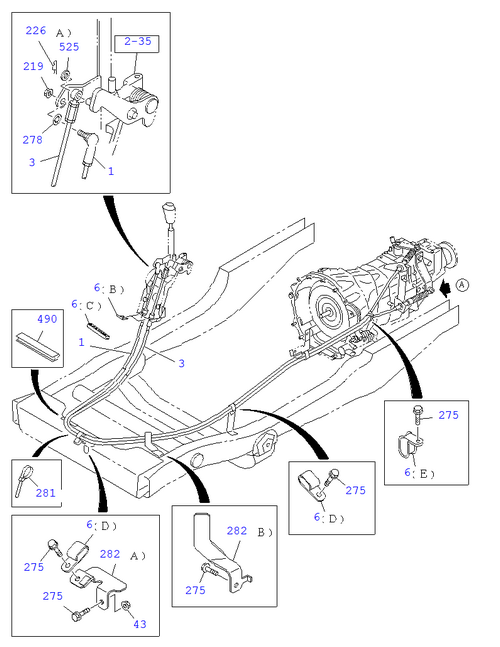

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 487 | I8-98271 067-A | BRACKET; CONT CABLE | 1 | 1802- | TRAGA | (B) | ||
| 282 | I8-98268 181-A | BRACKET; TRANS SIDE | 1 | 1802- | TRAGA | (A) | ||
| 490 | I9-65731 229-0 | PROTECTOR; EDGE | 1 | 1802- | TRAGA | L= 8 0 | ||
| 043 | I0-91180 108-0 | NUT; BRKT | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 006 | I0-95325 236-0 | CLIP; CABLE | 2 | 1802- | TRAGA | (D) ID=13X2 L=2 0 | ||
| 003 | I8-98240 667-A | CABLE; SELECT,TRANS CONT | 1 | 1802- | TRAGA | |||
| 525 | I0-91614 508-0 | WASHER; SHIFT CABLE | 1 | 1802- | TRAGA | ID=8.4 OD=16 | ||
| 226 | I8-94170 378-0 | PIN; SHIFT CABLE | 2 | 1802- | TRAGA | (B) L=23 | ||
| 077 | I8-97359 618-0 | NUT; LK,BALL JOINT,CONT ROD | 1 | 1802- | TRAGA | M12 FLANGE | ||
| 487 | I8-98271 066-A | BRACKET; CONT CABLE | 1 | 1802- | TRAGA | (A) | ||
| 006 | I8-97011 448-0 | CLIP; CABLE | 2 | 1802- | TRAGA | (B) | ||
| 201 | I0-28650 825-0 | BOLT; BRKT | 2 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 219 | I8-94363 045-0 | NUT; FLANGE,SHAFT CABLE | 1 | 1802- | TRAGA | M8 T= 8 . 0 | ||
| 281 | I5-09707 031-1 | CLIP; BAND | 1 | 1802- | TRAGA | L=14 0 | ||
| 228 | I0-91610 508-0 | WASHER; PL,SHIFT CABLE | 1 | 1802- | TRAGA | ID=8.4 OD=16 | ||
| 275 | I0-28650 825-0 | BOLT; CONT CABLE CLIP | 5 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 199 | I0-91610 508-0 | WASHER; PL,SELECT | 1 | 1802- | TRAGA | ID=8.4 OD=16 | ||
| 487 | I8-98271 068-A | BRACKET; CONT CABLE | 1 | 1802- | TRAGA | (C) | ||
| 006 | I8-97093 491-1 | CLIP; CABLE | 1 | 1802- | TRAGA | (C) | ||
| 006 | I8-97211 011-0 | CLIP; CABLE | 2 | 1802- | TRAGA | (A) ID=19.2 | ||
| 226 | I8-94157 841-0 | PIN; SHIFT CABLE | 1 | 1802- | TRAGA | (A) L=27 . 7 | ||
| 273 | I0-91180 110-0 | NUT; CONT CABLE | 2 | 1802- | TRAGA | (B) M10 FLANGE | ||
| 273 | I0-91180 108-0 | NUT; CONT CABLE | 1 | 1802- | TRAGA | (A) M8 FLANGE | ||
| 001 | I8-98240 665-A | CABLE; SHIFT,TRANS CONT | 1 | 1802- | TRAGA | |||
| 278 | I0-91541 208-0 | WASHER; LK,SHIFT WIRE | 1 | 1802- | TRAGA | ID=8.4 TOOTH LK INT | ||
| 282 | I8-98270 981-A | BRACKET; TRANS SIDE | 1 | 1802- | TRAGA | (B) |
