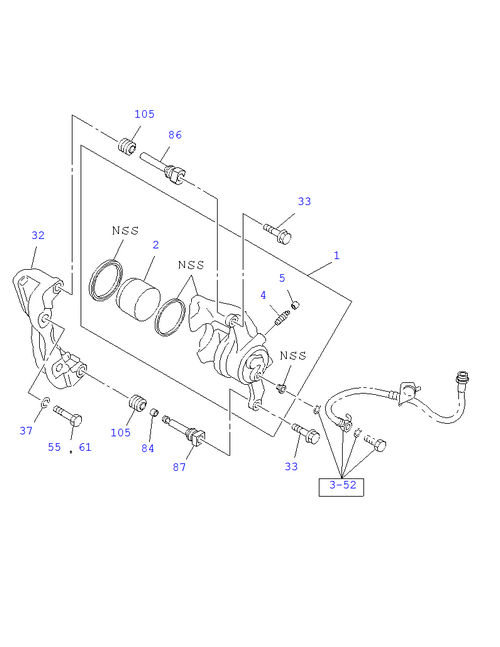

3-02 | FRONT DISC BRAKE CALIPER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98486 837-A | PISTON; CALIPER,DISC BRK,FRT | 4 | 1802- | TRAGA | |||
| 037 | I0-91510 814-0 | WASHER; LK | 4 | 1802- | TRAGA | ID=14.2 | ||

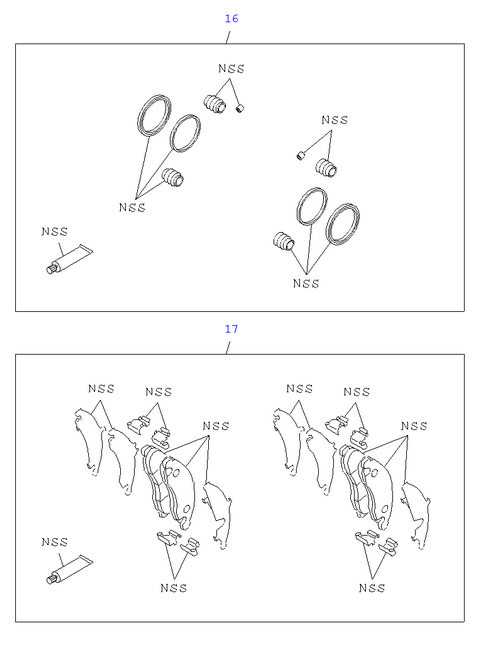

| 016 | I8-97486 836-A | REPAIR KIT; CALIPER,DISC BRK,FRT | 1 | 1802- | TRAGA | |||
| 086 | I8-98489 326-A | PIN; GUIDE | 2 | 1802- | TRAGA | |||
| 032 | I8-97486 762-A | SUPPORT; FRT DISC BRK | 2 | 1802- | TRAGA | |||
| 055 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 1802- | TRAGA | |||
| 005 | I8-98050 479-0 | CAP; BLEEDER,DISC BRK,FRT | 2 | 1802- | TRAGA | |||
| 033 | I8-98078 192-A | BOLT; SUPPORT BRKT TO DISC BRK | 4 | 1802- | TRAGA | |||
| 004 | I8-98050 476-0 | SCREW; BLEEDER,DISC BRK,FRT | 2 | 1802- | TRAGA | |||
| 087 | I8-98489 325-A | PIN; LOCK | 2 | 1802- | TRAGA | |||
| 061 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO KNUCKLE | 2 | 1802- | TRAGA | |||
| 001 | I8-98486 825-A | CALIPER; FRT DISC BRK | 1 | 1802- | TRAGA | |||
| 017 | I8-98283 244-A | PAD KIT; DISC BRK,FRT | 1 | 1802- | TRAGA | |||
| 105 | I8-98078 193-A | BOOT; CALIPER | 4 | 1802- | TRAGA | |||
| 084 | I8-97487 324-A | BUSHING; LOCK PIN | 2 | 1802- | TRAGA | |||
| 001 | I8-98486 826-A | CALIPER; FRT DISC BRK | 1 | 1802- | TRAGA |
