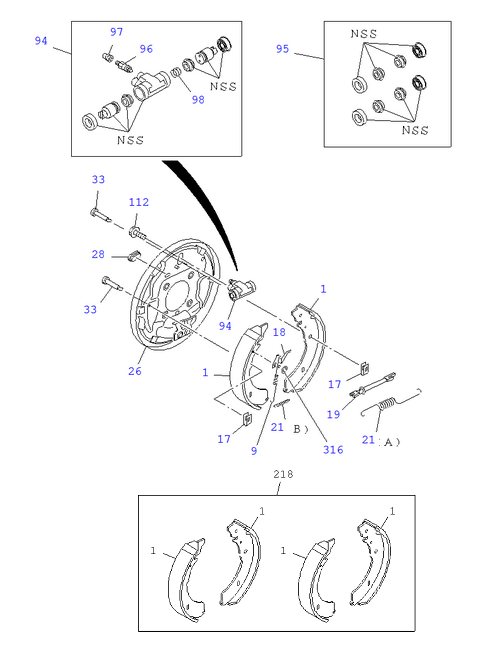

3-05 | REAR WHEEL BRAKE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 316 | I8-97330 511-0 | RING; SNAP | 2 | 1802- | TRAGA | |||
| 019 | I8-98315 026-0 | ADJUSTER; RR BRK | 1 | 1802- | TRAGA | |||
| 098 | I8-97301 483-0 | SPRING; RR WHEEL CYL | 2 | 1802- | TRAGA | |||
| 095 | I5-87832 246-0 | CUP SET; RR WHEEL CYL | 1 | 1802- | TRAGA | WO/PISTON | ||
| 033 | I8-97301 509-0 | PIN; SHOE HOLD DOWN | 4 | 1802- | TRAGA | |||
| 019 | I8-98315 027-0 | ADJUSTER; RR BRK | 1 | 1802- | TRAGA | |||
| 018 | I8-98007 997-0 | LEVER; AUTO ADJ | 1 | 1802- | TRAGA | |||
| 026 | I8-98315 024-0 | PLATE; BACK,RR BRK | 1 | 1802- | TRAGA | |||
| 028 | I8-97301 477-0 | COVER; ADJ HOLE | 4 | 1802- | TRAGA | |||
| 009 | I8-98008 004-0 | SPRING; RETURN,BRK SHOE | 1 | 1802- | TRAGA | |||
| 026 | I8-98315 025-0 | PLATE; BACK,RR BRK | 1 | 1802- | TRAGA | |||
| 001 | I6-87832 255-0 | SHOE; BRK,RR | 1 | 1802- | TRAGA | (IADG) | ||
| 001 | I8-98167 407-0 | SHOE; BRK,RR | 1 | 1802- | TRAGA | LEADING | ||
| 021 | I8-98008 001-0 | SPRING; SHOE,RET | 2 | 1802- | TRAGA | (A) | ||
| 009 | I8-98008 003-0 | SPRING; RETURN,BRK SHOE | 1 | 1802- | TRAGA | |||
| 021 | I8-98008 002-0 | SPRING; SHOE,RET | 2 | 1802- | TRAGA | (B) | ||
| 094 | I8-97301 478-0 | CYLINDER; WHEEL,RR BRK | 2 | 1802- | TRAGA | |||
| 018 | I8-98007 996-0 | LEVER; AUTO ADJ | 1 | 1802- | TRAGA | |||
| 001 | I8-98167 405-0 | SHOE; BRK,RR | 2 | 1802- | TRAGA | TRAILING | ||
| 096 | I8-97301 484-0 | SCREW; BLEEDER,RR BRK | 2 | 1802- | TRAGA | |||
| 001 | I8-98167 406-0 | SHOE; BRK,RR | 1 | 1802- | TRAGA | LEADING | ||
| 112 | I8-98008 015-0 | BOLT; WHEEL CYL SETTING | 4 | 1802- | TRAGA | |||
| 097 | I8-97301 485-0 | CAP; BLEEDER,RR WHEEL CYL | 2 | 1802- | TRAGA | |||
| 017 | I8-97301 510-0 | SPRING; SHOE HOLD DOWN | 4 | 1802- | TRAGA |
