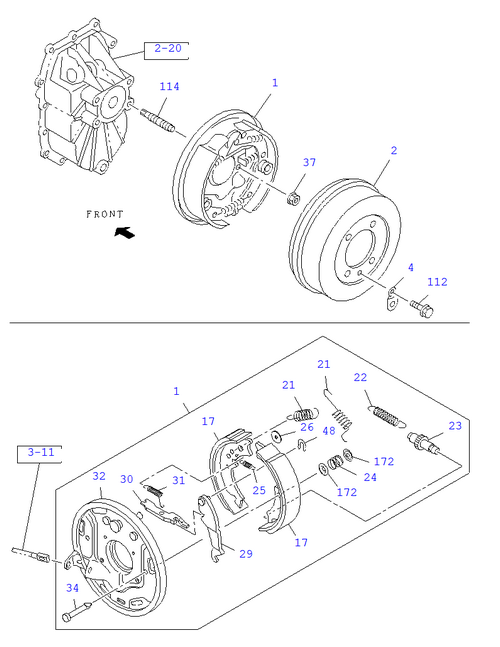

| 037 |
I8-98029 927-0 |
|
NUT; SUPPORT PLATE |
4 |
1802- |
|
TRAGA |
M12 LOCK NUT |
| 034 |
I8-98043 955-0 |
|
PIN; BRK SHOE |
2 |
1802- |
|
TRAGA |
|
| 026 |
I8-98043 959-0 |
|
PLATE; SHOE GUIDE |
1 |
1802- |
|
TRAGA |
|
| 114 |
I8-98029 929-0 |
|
STUD; SUPPORT PLATE |
4 |
1802- |
|
TRAGA |
|
| 004 |
I8-94379 421-0 |
|
COVER; ADJ HOLE |
1 |
1802- |
|
TRAGA |
|
| 112 |
I0-50540 616-0 |
|
BOLT; COVER TO BRK DRUM |
1 |
1802- |
|
TRAGA |
M6X16 W/LK WASHER |
| 030 |
I8-98043 953-0 |
|
STRUT; PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 029 |
I8-98043 949-0 |
|
LEVER; PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 024 |
I8-94132 155-1 |
|
SPRING; BRK SHOE |
2 |
1802- |
|
TRAGA |
|
| 002 |
I8-97034 901-1 |
|
DRUM; PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 031 |
I8-94132 158-0 |
|
SPRING; SHOE TO STRUT |
1 |
1802- |
|
TRAGA |
|
| 021 |
I8-94132 157-0 |
|
SPRING; RETURN,PARKING BRK SHOE |
2 |
1802- |
|
TRAGA |
|
| 032 |
I8-97308 176-0 |
|
PLATE; SUPPORT,PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 023 |
I8-98043 954-0 |
|
SCREW; ADJ,PARKING BRK SHOE |
1 |
1802- |
|
TRAGA |
|
| 022 |
I8-94107 618-0 |
|
SPRING; ADJ SCREW,PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 172 |
I8-98043 956-0 |
|
CUP; SHOE HOLD |
4 |
1802- |
|
TRAGA |
|
| 017 |
I8-97020 250-2 |
|
SHOE; PARKING BRK |
2 |
1802- |
|
TRAGA |
|
| 025 |
I8-94132 156-0 |
|
SPRING; SHOE ALIGNMENT |
1 |
1802- |
|
TRAGA |
|
| 048 |
I8-98043 958-0 |
|
RETAINER; PIN,PARKING BRK |
1 |
1802- |
|
TRAGA |
|
| 001 |
I8-98029 922-0 |
|
BRAKE ASM; CENTER,PARKING |
1 |
1802- |
|
TRAGA |
|
