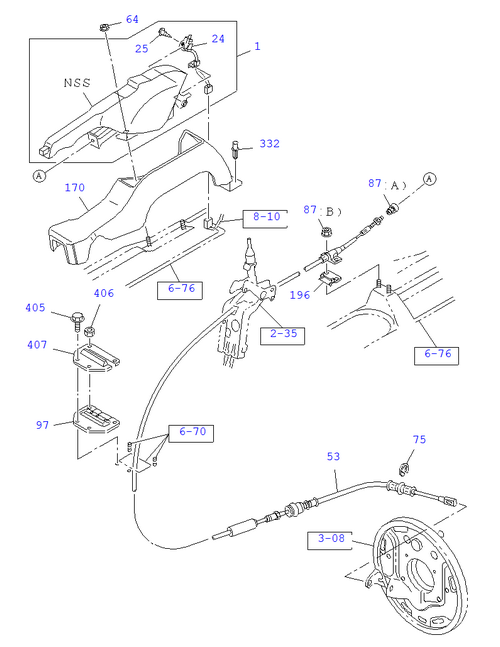

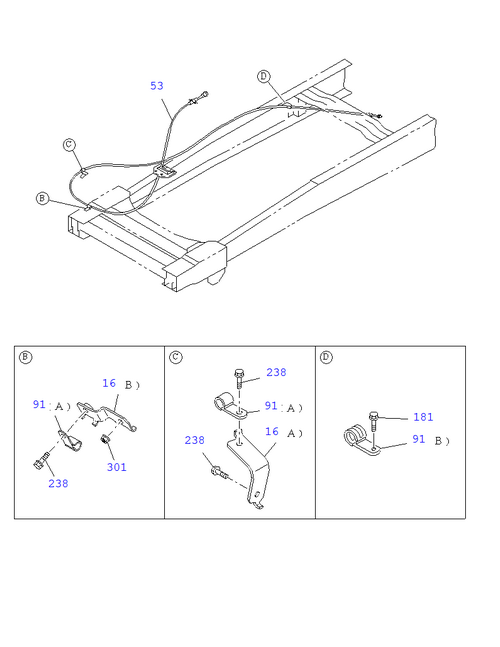

3-11 | PARKING BRAKE CONTROL
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 407 | I8-97048 319-1 | RETAINER; GROMMET | 1 | 1802- | TRAGA | |||
| 016 | I8-98289 323-A | BRACKET; PARKING BRK | 1 | 1802- | TRAGA | (B) | ||
| 001 | I8-97466 820-0 | STEM ASM; PARKING BRK | 1 | 1802- | TRAGA | GRAY | ||
| 406 | I0-91180 106-0 | NUT; GROMMET | 2 | 1802- | TRAGA | M6 FLANGE | ||
| 181 | I0-28650 825-0 | BOLT; BRKT | 1 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 301 | I0-91180 108-0 | NUT; BRKT,BRK & CLU PEDAL | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 075 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 1802- | TRAGA | ID=12 | ||
| 087 | I8-98034 313-1 | NUT | 1 | 1802- | TRAGA | (A) M6 | ||
| 405 | I0-28450 620-0 | BOLT; GROMMET | 2 | 1802- | TRAGA | M6X2 0 FLANGE | ||
| 332 | I8-97466 764-0 | CLIP; COVER | 1 | 1802- | TRAGA | GRAY | ||
| 016 | I8-98268 116-A | BRACKET; PARKING BRK | 1 | 1802- | TRAGA | (A) | ||
| 170 | I8-97468 512-2 | COVER; PARKING BRK LEVER | 1 | 1802- | TRAGA | GRAY | ||
| 196 | I8-98034 201-0 | SPACER; CABLE TO LEVER | 1 | 1802- | TRAGA | |||
| 087 | I0-91180 108-0 | NUT | 2 | 1802- | TRAGA | (B) M8 FLANGE | ||
| 053 | I8-98240 661-A | CABLE; PARK BRK,FRT LWR | 1 | 1802- | TRAGA | |||
| 097 | I8-97061 403-A | GROMMET; PARKING BRK CABLE | 1 | 1802- | TRAGA | |||
| 064 | I0-91380 008-0 | NUT; PARKING BRK | 2 | 1802- | TRAGA | M8 LOCK NUT FLANGE | ||
| 091 | I0-95235 255-0 | CLIP; PARKING BRK CABLE | 2 | 1802- | TRAGA | (A) ID=13 L=28 | ||
| 025 | I8-98152 463-0 | SCREW; SW,PARKING BRK | 1 | 1802- | TRAGA | |||
| 024 | I8-98238 611-0 | SWITCH ASM; PARK BRK | 1 | 1802- | TRAGA | |||
| 238 | I0-28650 825-0 | BOLT; CLIP TO BRKT | 3 | 1802- | TRAGA | M8X2 5 FLANGE | ||
| 091 | I1-09701 012-0 | CLIP; PARKING BRK CABLE | 1 | 1802- | TRAGA | (B) ID=14.5 L=20 |
