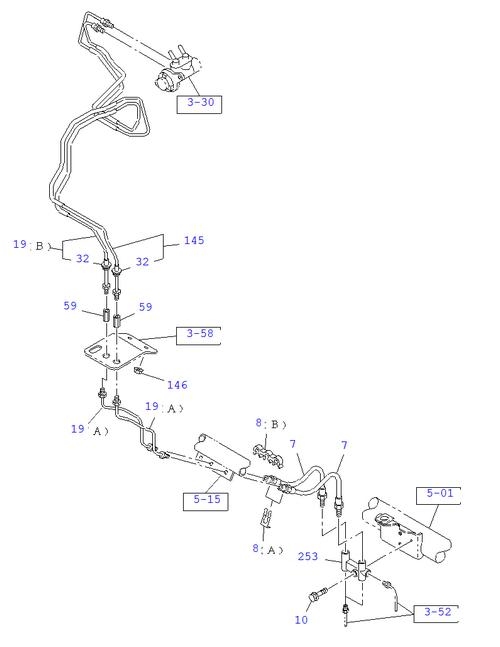

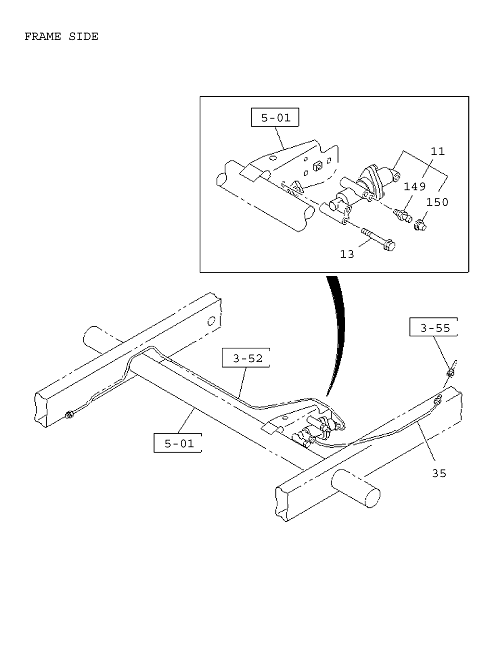

3-50 | BRAKE PIPING; OIL,MASTER CYLINDER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 007 | I8-97171 031-0 | HOSE; FLEX,PIPE TO 5 WAY JOINT | 2 | 1802- | TRAGA | |||
| 008 | I8-97365 304-0 | CLIP; FLEX HOSE,CABLE SIDE | 2 | 1802- | TRAGA | (A) | ||
| 145 | I8-98259 004-A | PIPE; BRK,METERING VLV TO UNION | 1 | 1802- | TRAGA | |||
| 008 | I8-98056 614-0 | CLIP; FLEX HOSE,CABLE SIDE | 1 | 1802- | TRAGA | (B) | ||
| 013 | I0-28050 870-0 | BOLT; VLV TO BRKT | 2 | 1802- | TRAGA | M8X70 FLANGE | ||
| 146 | I0-91180 108-0 | NUT; BRKT | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 019 | I8-97035 978-A | PIPE; BRK,M/CYL TO UNION | 2 | 1802- | TRAGA | (A) | ||
| 010 | I0-28650 640-0 | BOLT; JOINT | 1 | 1802- | TRAGA | M6X4 0 FLANGE | ||
| 149 | I8-97093 663-0 | PLUG; BLEEDER,DSV | 1 | 1802- | TRAGA | |||
| 150 | I8-97093 662-0 | CAP; BLEEDER PLUG,DSV | 1 | 1802- | TRAGA | |||
| 253 | I5-47456 009-1 | JOINT | 1 | 1802- | TRAGA | |||
| 032 | I8-94148 910-1 | GROMMET; PIPE | 2 | 1802- | TRAGA | |||
| 059 | I0-92107 005-0 | UNION; BRK PIPE | 2 | 1802- | TRAGA | M10X2 STRAIGHT | ||
| 035 | I8-98238 741-A | PIPE; BRK,VLV TO RR AXLE | 1 | 1802- | TRAGA | |||
| 011 | I8-97082 058-0 | VALVE; BRK CONT | 1 | 1802- | TRAGA | |||
| 019 | I8-98259 088-A | PIPE; BRK,M/CYL TO UNION | 1 | 1802- | TRAGA | (B) |
