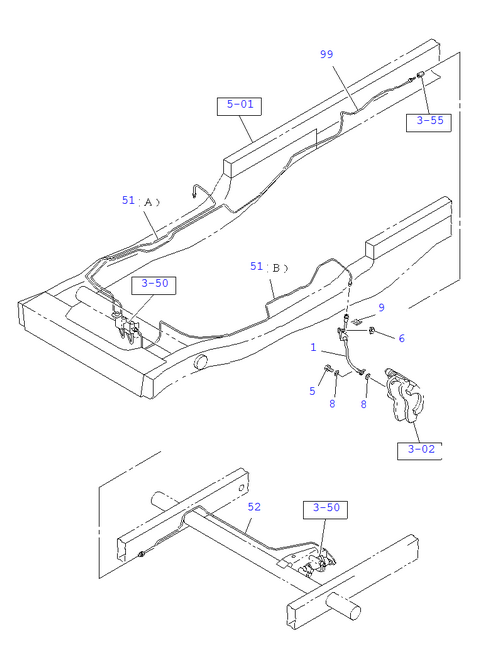

3-52 | BRAKE PIPING; OIL,FRONT
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 006 | I0-91180 108-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 009 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 1802- | TRAGA | |||
| 001 | I8-98286 092-0 | HOSE; FLEX,FRT BRK | 1 | 1802- | TRAGA | |||
| 008 | I9-09571 410-0 | GASKET; FLEX HOSE,FRT BRK | 4 | 1802- | TRAGA | ID=10.2 OD=16.0 | ||
| 051 | I8-98238 737-A | PIPE; BRK | 1 | 1802- | TRAGA | (B) | ||
| 005 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE,FRT BRK | 2 | 1802- | TRAGA | M10X22 | ||
| 051 | I8-98238 736-A | PIPE; BRK | 1 | 1802- | TRAGA | (A) | ||
| 099 | I8-98238 738-A | PIPE ASM; 4/5/6 WAY | 1 | 1802- | TRAGA | |||
| 001 | I8-98286 093-0 | HOSE; FLEX,FRT BRK | 1 | 1802- | TRAGA | |||
| 052 | I8-98238 739-A | PIPE; BRK | 1 | 1802- | TRAGA |
