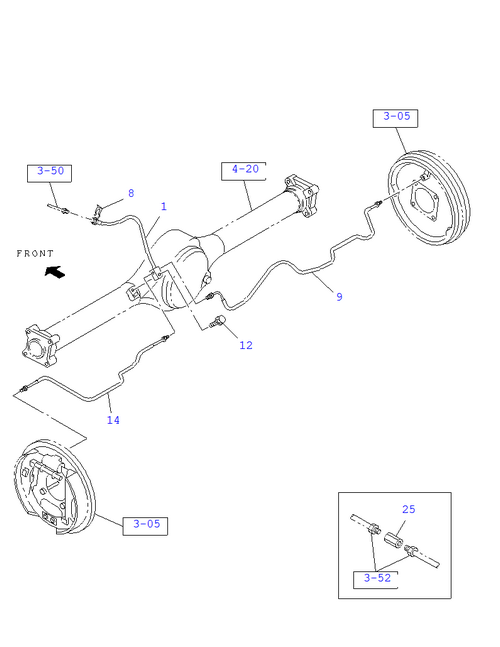

3-55 | BRAKE PIPING; OIL,REAR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 012 | I0-28650 830-0 | BOLT; FLEX HOSE TO RR AXLE | 1 | 1802- | TRAGA | M8X3 0 FLANGE | ||
| 014 | I8-98236 775-A | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 1802- | TRAGA | |||
| 009 | I8-98236 776-A | PIPE; BRK,RR AXLE | 1 | 1802- | TRAGA | |||
| 001 | I8-98259 164-0 | HOSE; FLEX,RR BRK | 1 | 1802- | TRAGA | |||
| 025 | I0-92107 005-0 | CONNECTOR | 1 | 1802- | TRAGA | M10X2 STRAIGHT | ||
| 008 | I8-97360 054-0 | CLIP; RR BRK | 1 | 1802- | TRAGA |
