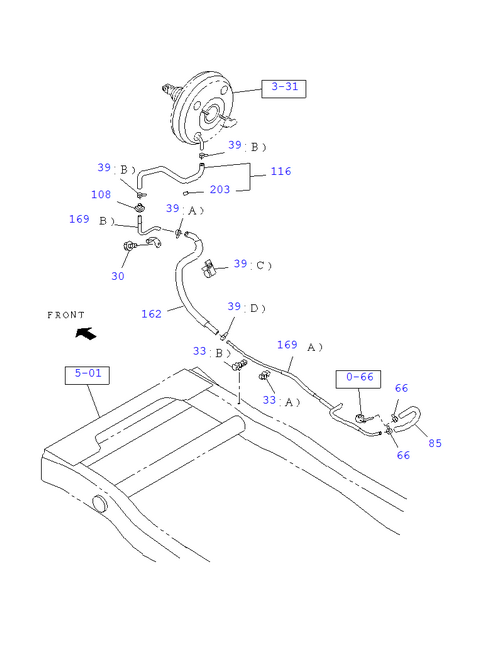

3-60 | BRAKE PIPING; VACUUM
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 169 | I8-98238 751-A | PIPE; VAC,BOOSTER SIDE | 1 | 1802- | TRAGA | (A) | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 1802- | TRAGA | ID=16 | ||
| 039 | I8-97077 492-0 | CLIP; HOSE,VAC | 1 | 1802- | TRAGA | (C) ID=2 5.5 | ||
| 108 | I8-94107 642-1 | GROMMET; PIPE | 1 | 1802- | TRAGA | |||
| 162 | I8-98239 165-A | HOSE; VAC | 1 | 1802- | TRAGA | |||
| 116 | I8-98259 116-A | HOSE; VAC,M/VAC | 1 | 1802- | TRAGA | |||
| 039 | I5-09707 023-2 | CLIP; HOSE,VAC | 1 | 1802- | TRAGA | (A) ID=16 | ||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 2 | 1802- | TRAGA | (B) ID=16 | ||
| 203 | I8-94104 021-0 | VALVE; CHECK | 1 | 1802- | TRAGA | |||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 1 | 1802- | TRAGA | (D) ID=16 | ||
| 033 | I8-97168 819-0 | CLIP; VAC PIPE | 1 | 1802- | TRAGA | (B) ID=10 & 4.76X3 | ||
| 169 | I8-98259 120-A | PIPE; VAC,BOOSTER SIDE | 1 | 1802- | TRAGA | (B) | ||
| 033 | I1-09709 305-0 | CLIP; VAC PIPE | 1 | 1802- | TRAGA | (A) ID=4.7 6 & 10.0 | ||
| 030 | I0-28660 820-0 | BOLT; CLIP,VAC PIPE | 1 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 085 | I8-98240 215-A | HOSE; VAC,ENG SIDE | 1 | 1802- | TRAGA |
