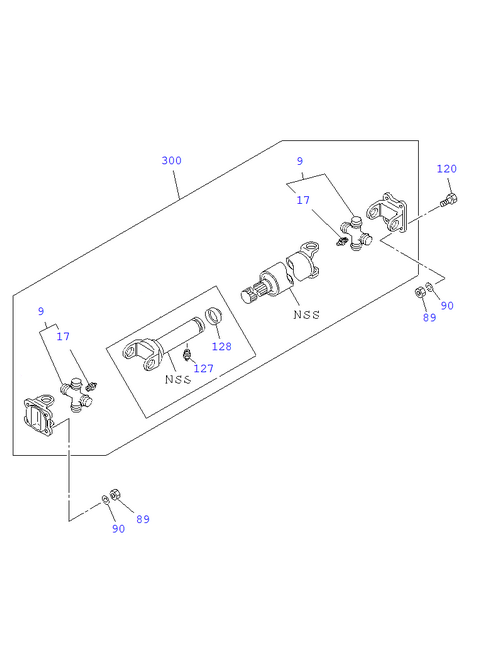

4-01 | PROPELLER SHAFT
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-97947 582-0 | JOURNAL ASM; PROP SHAFT | 2 | 1802- | TRAGA | |||
| 128 | I8-97020 597-1 | SEAL; SLEEVE | 1 | 1802- | TRAGA | |||
| 090 | I0-91510 610-0 | WASHER; LK,YOKE TO RR AXLE | 8 | 1802- | TRAGA | ID=10.2 | ||
| 089 | I8-98056 949-0 | NUT; YOKE TO RR AXLE | 8 | 1802- | TRAGA | M10 | ||
| 300 | I8-97696 194-A | SHAFT ASM; PROP,RR | 1 | 1802- | TRAGA | L=764 . 5 | ||
| 120 | I8-98056 948-0 | BOLT; YOKE TO RR AXLE | 4 | 1802- | TRAGA | M10X2 9 | ||
| 127 | I0-90301 406-0 | NIPPLE; GREASE,SPLINED YOKE | 1 | 1802- | TRAGA | M6 STRAIGHT | ||
| 017 | I0-90301 406-0 | NIPPLE; GREASE,PROP SHAFT | 2 | 1802- | TRAGA | M6 STRAIGHT |
