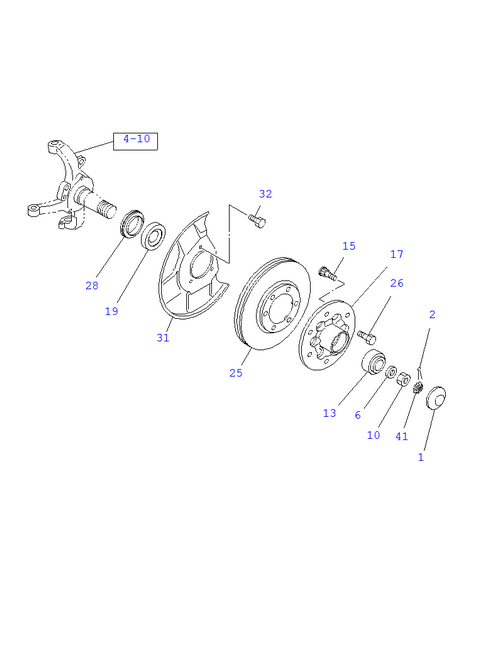

4-11 | FRONT HUB AND DRUM OR ROTOR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I0-81124 030-0 | PIN; SPLIT,HUB TO AXLE SHAFT | 2 | 1802- | TRAGA | OD=3.7 L=30 | ||
| 006 | I8-97382 661-0 | WASHER; LK,FRT HUB | 2 | 1802- | TRAGA | T=3 . 2 OD=3 5 | ||
| 013 | I8-94361 801-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 1802- | TRAGA | |||
| 031 | I8-98286 090-1 | COVER; DUST,FRT BRAKE | 1 | 1802- | TRAGA | |||
| 041 | I8-94243 928-1 | RETAINER; NUT,FRT HUB | 2 | 1802- | TRAGA | |||
| 013 | I8-94361 801-A | BEARING; HUB OUTER,FRT AXLE | 2 | 1802- | TRAGA | (IADG) | ||
| 019 | I8-94242 683-A | BEARING; HUB INNER,FRT AXLE | 2 | 1802- | TRAGA | (IADG) | ||
| 032 | I8-98006 352-0 | BOLT; DUST COVER TO KNUCKLE | 6 | 1802- | TRAGA | M8X10 W/LK WASHER | ||
| 001 | I8-98006 055-0 | CAP; HUB,FRT AXLE | 2 | 1802- | TRAGA | |||
| 017 | I8-97238 417-1 | HUB; FRT AXLE | 2 | 1802- | TRAGA | |||
| 010 | I8-94243 927-1 | NUT; FRT HUB BRG | 2 | 1802- | TRAGA | M18 | ||
| 028 | I8-98036 593-0 | SEAL; OIL,FRT HUB | 2 | 1802- | TRAGA | |||
| 031 | I8-98286 089-1 | COVER; DUST,FRT BRAKE | 1 | 1802- | TRAGA | |||
| 026 | I8-98006 065-0 | BOLT; BRK,DISC TO HUB | 12 | 1802- | TRAGA | M12X31.5 FLANGE | ||
| 015 | I8-98317 098-0 | PIN; WHEEL,FRT AXLE | 12 | 1802- | TRAGA | |||
| 025 | I8-98286 091-A | ROTOR; DISC BRK,FRT | 2 | 1802- | TRAGA |
