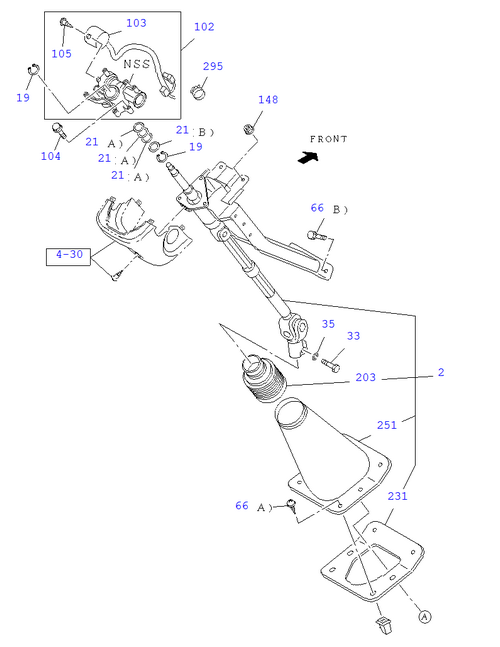

4-31 | STEERING COLUMN AND SHAFT
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 035 | I0-91510 808-0 | WASHER; LK,STRG SHAFT | 1 | 1802- | TRAGA | ID=8.2 | ||
| 152 | I8-98296 670-0 | WASHER; LK,STRG UNIT | 4 | 1802- | TRAGA | ID=17 | ||
| 321 | I0-28661 230-0 | BOLT; BRKT,STRG | 2 | 1802- | TRAGA | M12X3 0 FLANGE | ||
| 033 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 1802- | TRAGA | M8X30 | ||
| 066 | I8-98051 939-0 | BOLT; STRG COLUMN | 2 | 1802- | TRAGA | (B) M8X24.5 W/LK&PL WASHER | ||
| 021 | I8-94174 865-0 | WASHER; WAVE,STRG LOCK TO SHAFT | 3 | 1802- | TRAGA | (A) | ||
| 203 | I8-97076 822-0 | BOOT; STRG COLUMN LWR | 1 | 1802- | TRAGA | |||
| 271 | I0-91510 808-0 | WASHER; LK,GEAR BOX | 2 | 1802- | TRAGA | ID=8.2 | ||
| 148 | I0-91180 208-0 | NUT; COLUMN TO BRKT | 2 | 1802- | TRAGA | M8 FLANGE | ||
| 066 | I0-72180 518-0 | BOLT; STRG COLUMN | 6 | 1802- | TRAGA | (A) M5X18 TAPPING | ||
| 021 | I8-94146 919-0 | WASHER; WAVE,STRG LOCK TO SHAFT | 1 | 1802- | TRAGA | (B) ID=19 | ||
| 019 | I9-09180 019-A | RING; SNAP,STRG SHAFT | 2 | 1802- | TRAGA | ID=17.5 | ||
| 002 | I8-97490 337-1 | SHAFT ASM; STRG | 1 | 1802- | TRAGA | |||
| 095 | I8-97695 348-0 | BOLT; STRG UNIT | 2 | 1802- | TRAGA | |||
| 096 | I0-91110 516-0 | NUT; STRG UNIT | 2 | 1802- | TRAGA | M16 | ||
| 231 | I8-97076 808-3 | SEAL; RUBBER,STRG COLUMN | 1 | 1802- | TRAGA | |||
| 103 | I8-97088 268-0 | SWITCH; IGNITION | 1 | 1802- | TRAGA | |||
| 251 | I8-97398 450-1 | COVER; LWR | 1 | 1802- | TRAGA | |||
| 102 | I8-97170 364-0 | LOCK ASM; STRG | 1 | 1802- | TRAGA | |||
| 291 | I8-94463 268-A | GROMMET; STRG SHAFT COVER | 6 | 1802- | TRAGA | |||
| 105 | I9-03910 412-0 | SCREW; IGN SW | 1 | 1802- | TRAGA | M4X12 W/LK WASHER | ||
| 149 | I8-97359 615-0 | BOLT; GEAR BOX | 2 | 1802- | TRAGA | M8X30 | ||
| 008 | I8-98229 840-1 | JOINT; UNIVERSAL | 1 | 1802- | TRAGA | |||
| 104 | I8-97189 885-0 | BOLT; STRG LOCK TO COLUMN | 3 | 1802- | TRAGA | M6X3 0 W/LK&PL WASHER | ||
| 001 | I8-98229 842-1 | STEERING UNIT | 1 | 1802- | TRAGA | |||
| 295 | I8-97173 307-0 | CLIP; HARNESS | 3 | 1802- | TRAGA | L=155 |
