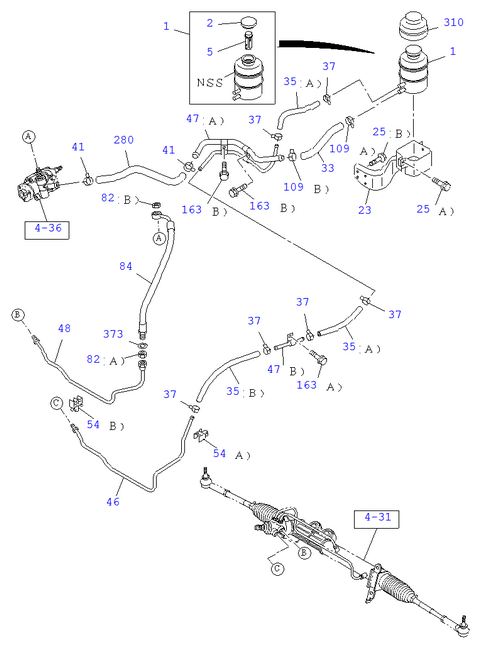

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 035 | I0-19809 300-0 | HOSE; RETURN,P/S TANK | 1 | 1802- | TRAGA | (B) L=2 70 SERVICED BY L=3000 | ||
| 025 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 4 | 1802- | TRAGA | (B) M8X2 5 FLANGE | ||
| 047 | I8-98238 772-A | PIPE; RETURN | 1 | 1802- | TRAGA | (A) | ||
| 163 | I0-28650 620-0 | BOLT; OIL PIPE | 1 | 1802- | TRAGA | (A) M6X2 0 FLANGE | ||
| 047 | I8-98127 815-A | PIPE; RETURN | 1 | 1802- | TRAGA | (B) | ||
| 001 | I8-97107 987-0 | TANK ASM; OIL,P/S | 1 | 1802- | TRAGA | |||
| 033 | I0-09814 300-0 | HOSE; RUBBER,POWER STRG | 1 | 1802- | TRAGA | L=180 SERVICED BY L=300 | ||
| 025 | I0-28450 620-0 | BOLT; OIL TANK BRKT | 1 | 1802- | TRAGA | (A) M6X2 0 FLANGE | ||
| 109 | I8-97359 141-0 | CLIP; RUBBER HOSE | 1 | 1802- | TRAGA | (A) ID=22 | ||
| 280 | I8-98239 811-A | HOSE; P/S OIL PUMP,INL | 1 | 1802- | TRAGA | |||
| 082 | I8-94370 339-0 | NUT; FLEX HOSE,P/S | 1 | 1802- | TRAGA | (A) M16 | ||
| 163 | I0-28650 825-0 | BOLT; OIL PIPE | 2 | 1802- | TRAGA | (B) M8X2 5 FLANGE | ||
| 005 | I8-97094 732-0 | STRAINER; OIL TANK,P/S | 1 | 1802- | TRAGA | |||
| 041 | I8-98150 355-0 | CLIP; HOSE,P/S | 2 | 1802- | TRAGA | ID=21 | ||
| 023 | I8-97695 365-A | BRACKET; OIL TANK,P/S | 1 | 1802- | TRAGA | |||
| 002 | I8-94146 153-2 | CAP; OIL TANK,P/S | 1 | 1802- | TRAGA | |||
| 037 | I8-98008 098-0 | CLIP; HOSE,P/S | 2 | 1802- | TRAGA | ID=16 | ||
| 037 | I8-98008 098-0 | CLIP; HOSE,P/S | 4 | 1802- | TRAGA | ID=16 | ||
| 109 | I8-98150 355-0 | CLIP; RUBBER HOSE | 1 | 1802- | TRAGA | (B) ID=21 | ||
| 310 | I8-97103 394-0 | COVER; OIL TANK | 1 | 1802- | TRAGA | |||
| 046 | I8-98238 778-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 1802- | TRAGA | |||
| 048 | I8-98238 776-A | PIPE; OIL,FLEX HOSE TO STRG UNIT | 1 | 1802- | TRAGA | |||
| 054 | I8-97018 546-0 | CLIP; OIL PIPE | 1 | 1802- | TRAGA | (B) ID=10X2 H=37.5 | ||
| 373 | I0-91541 216-0 | WASHER; HOSE,P/S | 1 | 1802- | TRAGA | ID=16.5 TOOTH LK INT | ||
| 054 | I8-94462 219-0 | CLIP; OIL PIPE | 1 | 1802- | TRAGA | (A) ID=10 H=40 | ||
| 082 | I8-97028 390-1 | NUT; FLEX HOSE,P/S | 1 | 1802- | TRAGA | (B) M12 SELF LOCK | ||
| 035 | I0-19809 300-0 | HOSE; RETURN,P/S TANK | 2 | 1802- | TRAGA | (A) L=2 00 SERVICED BY L=3000 | ||
| 084 | I8-98239 812-0 | HOSE; FLEX,P/S | 1 | 1802- | TRAGA |
