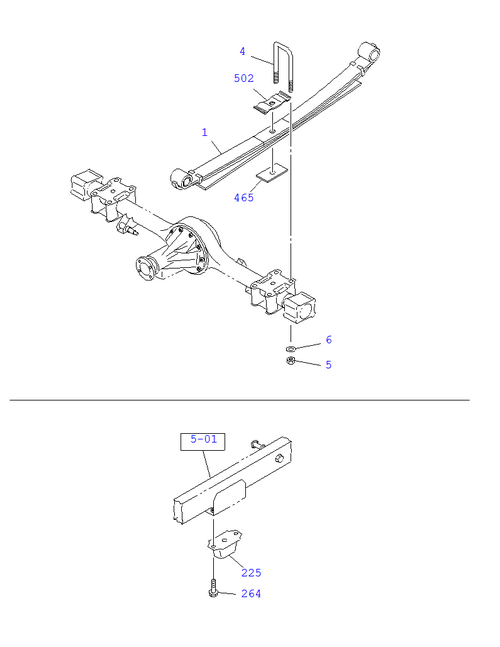

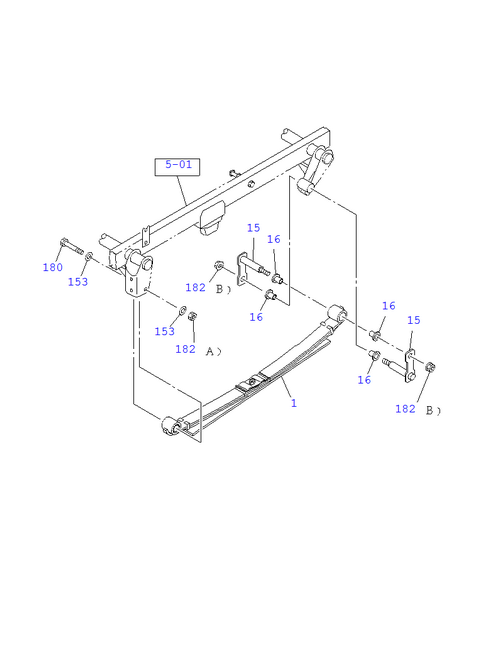

4-60 | REAR SUSPENSION
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 180 | I8-98011 487-0 | PIN; RR SPR | 2 | 1802- | TRAGA | M16X122 | ||
| 004 | I8-94135 765-A | U-BOLT; RR SPR | 4 | 1802- | TRAGA | L=195 | ||
| 225 | I8-97035 815-1 | RUBBER; CUSHION,RR SPR | 2 | 1802- | TRAGA | |||
| 015 | I8-97695 357-A | SHACKLE; RR SPR | 4 | 1802- | TRAGA | |||
| 153 | I8-98011 489-0 | WASHER; PL,SPRING PIN | 4 | 1802- | TRAGA | ID=16.5 | ||
| 182 | I0-91110 516-0 | NUT; PIN,RR SPR | 2 | 1802- | TRAGA | (A) M16 | ||
| 182 | I8-97360 125-0 | NUT; PIN,RR SPR | 4 | 1802- | TRAGA | (B) M16 FLANGE | ||
| 006 | I8-97360 118-0 | WASHER; PL,U-BOLT | 8 | 1802- | TRAGA | ID=16.4 | ||
| 005 | I8-97360 121-0 | NUT; U-BOLT,RR SPR | 8 | 1802- | TRAGA | M16 | ||
| 502 | I8-94119 069-2 | CLAMP; RR LEAF SPR | 2 | 1802- | TRAGA | L=13 0 T=4.5 | ||
| 016 | I6-94113 323-2 | BUSH SHACKLE RR SPR | 8 | 1802- | (IADG) | |||
| 465 | I7-47494 007-A | SHIM; ADJ | AR | 1802- | TRAGA | RR BODY FLAT BED | ||
| 264 | I0-28651 025-0 | BOLT; CUSHION RUBBER TO BRKT | 4 | 1802- | TRAGA | M10X2 5 FLANGE | ||
| 001 | I8-98240 614-A | SPRING ASM; LEAF,RR | 2 | 1802- | TRAGA | 3-LEAF | ||
| 016 | I8-94113 323-2 | BUSHING; SHACKLE,RR SPR | 8 | 1802- | TRAGA |
