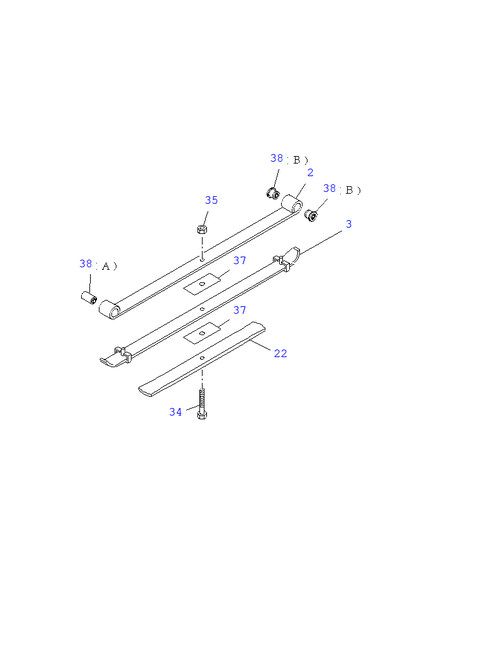

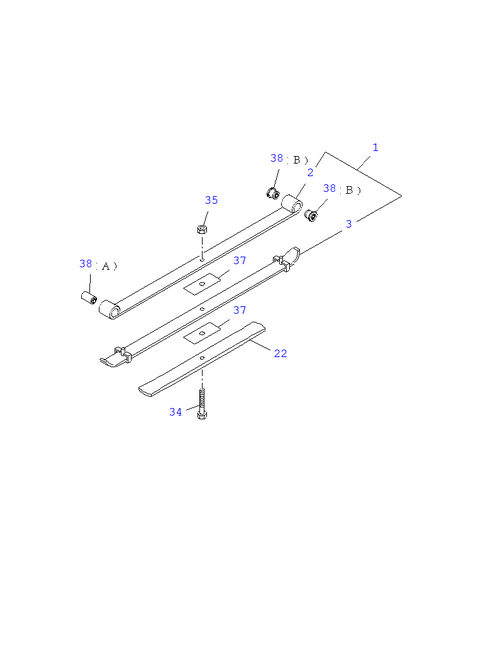

4-65 | REAR LEAF SPRING
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I8-97696 408-A | SPACER; CENTER,LEAF SPR,RR | 2 | TRAGA | ||||
| 038 | I8-94249 427-A | BUSHING; LEAF SPR,RR | 2 | TRAGA | (B) L=35 | |||
| 022 | I8-97696 403-A | SPRING; LEAF,NO 1,RR SUB | 1 | TRAGA | ||||
| 038 | I8-97227 996-A | BUSHING; LEAF SPR,RR | 1 | TRAGA | (A) OD=42 | |||
| 002 | I8-97696 401-A | SPRING; LEAF,NO 1,RR MAIN | 1 | TRAGA | ||||
| 003 | I8-97696 402-A | SPRING; LEAF,NO 2,RR MAIN | 1 | TRAGA | ||||
| 034 | I8-97696 405-A | BOLT; CENTER,LEAF SPR,RR MAIN | 1 | TRAGA |
