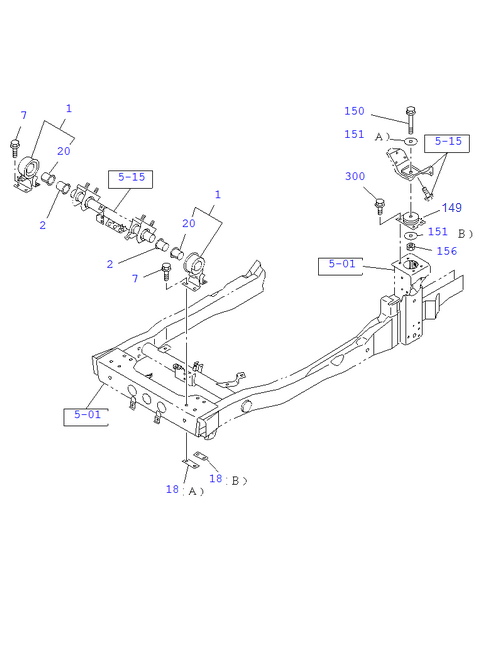

5-10 | CAB MOUNTING; FRAME SIDE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 300 | I0-28651 020-0 | BOLT; MTG RUBBER | 8 | 1802- | TRAGA | M10X2 0 FLANGE | ||
| 156 | I0-91111 516-0 | NUT; CAB MTG RR | 2 | 1802- | TRAGA | M16 | ||
| 001 | I8-97033 350-3 | BRACKET; CAB MTG | 1 | 1802- | TRAGA | |||
| 001 | I8-97033 348-5 | BRACKET; CAB MTG | 1 | 1802- | TRAGA | |||
| 002 | I8-97061 514-0 | BUSHING; TORSION BAR | 2 | 1802- | TRAGA | |||
| 150 | I0-28851 690-0 | BOLT; CAB MTG RR | 2 | 1802- | TRAGA | |||
| 020 | I8-97033 368-3 | RUBBER; MTG,CAB BRKT | 2 | 1802- | TRAGA | |||
| 151 | I8-97359 040-1 | WASHER; CAB MTG,RR UPR | 2 | 1802- | TRAGA | (A) ID=16.5 OD=58 | ||
| 018 | I8-97034 139-2 | PLATE; MTG BRKT FIX | 2 | 1802- | TRAGA | (A) FRONT | ||
| 151 | I8-97359 042-1 | WASHER; CAB MTG,RR UPR | 2 | 1802- | TRAGA | (B) ID=17 OD=62 | ||
| 149 | I8-97086 442-A | RUBBER; MTG,CAB,UPR RR | 2 | 1802- | TRAGA | |||
| 018 | I8-97034 140-2 | PLATE; MTG BRKT FIX | 2 | 1802- | TRAGA | (B) REAR | ||
| 007 | I0-28651 240-0 | BOLT; BRKT,CAB TILT | 8 | 1802- | TRAGA | M12X4 0 FLANGE |
