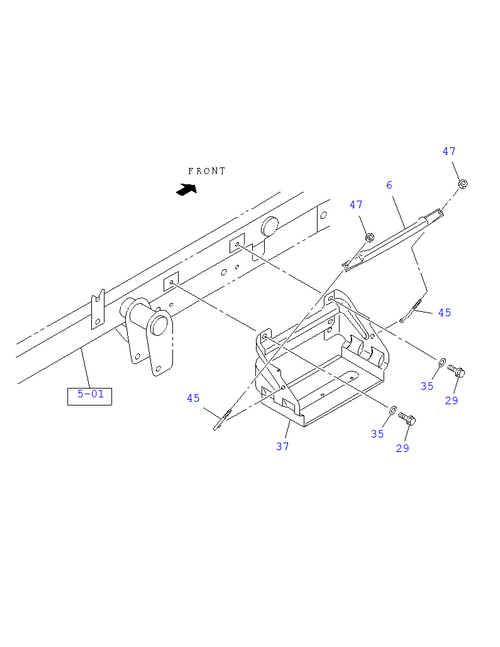

5-20 | BATTERY CARRIER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I8-97695 718-A | BRACKET; BATTERY | 1 | 1802- | TRAGA | |||
| 029 | I0-28661 030-0 | BOLT; BRKT TO FRAME | 4 | 1802- | TRAGA | M10X3 0 FLANGE | ||
| 035 | I0-91610 610-0 | WASHER; PL,BATTERY CARRIER | 4 | 1802- | TRAGA | ID=10.5 OD=2 2 T=1. 6 | ||
| 047 | I0-91110 508-0 | NUT; BRKT | 2 | 1802- | TRAGA | M8 |
