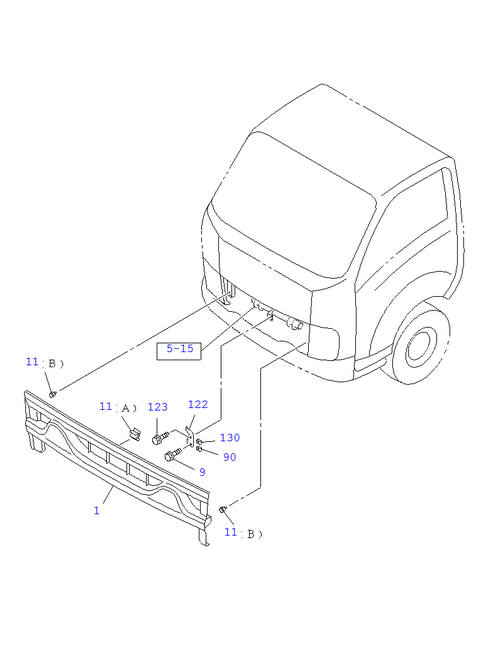

6-03 | RADIATOR GRILLE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 090 | I8-98014 760-0 | NUT; RAD GRILLE | 1 | 1802- | TRAGA | |||
| 011 | I8-97102 415-0 | CLIP; RAD GRILLE | 3 | 1802- | TRAGA | (A) | ||
| 130 | I8-98014 760-0 | NUT; BRKT | 1 | 1802- | TRAGA | |||
| 011 | I8-97581 651-2 | CLIP; RAD GRILLE | 4 | 1802- | TRAGA | (B) | ||
| 001 | I8-98269 542-A | GRILLE; RAD | 1 | 1802- | TRAGA | |||
| 123 | I8-98059 504-0 | BOLT; BRKT AIR GUIDE | 1 | 1802- | TRAGA | M6X2 0 W/PL WASHER | ||
| 009 | I8-98059 504-0 | SCREW; RAD GRILLE | 1 | 1802- | TRAGA | M6X2 0 W/PL WASHER | ||
| 122 | I8-98258 643-A | BRACKET; AIR GUIDE | 1 | 1802- | TRAGA |
