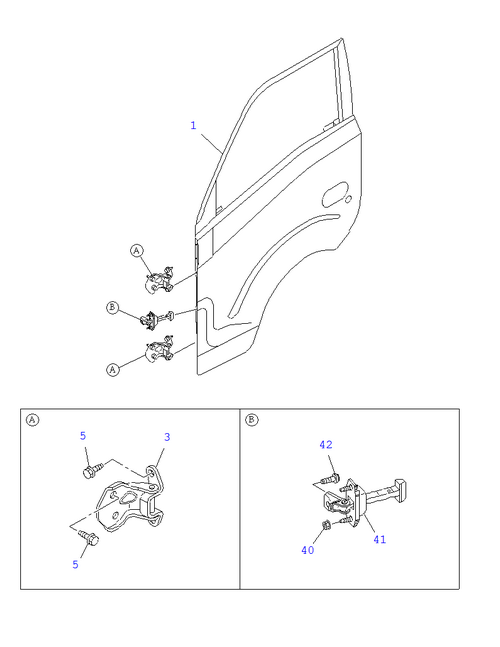

6-30 | FRONT DOOR AND HINGE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I8-98049 756-0 | BOLT; HINGE | 16 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 042 | I8-98166 694-0 | BOLT; BRKT | 2 | 1802- | TRAGA | M8X23 | ||
| 040 | I0-91180 106-0 | NUT; CHECKER | 4 | 1802- | TRAGA | M6 FLANGE | ||
| 001 | I8-98259 133-A | DOOR ASM; FRT,WO/TRIM | 1 | 1802- | TRAGA | |||
| 001 | I8-98259 132-A | DOOR ASM; FRT,WO/TRIM | 1 | 1802- | TRAGA | |||
| 003 | I8-94155 314-2 | HINGE; DOOR FRT | 2 | 1802- | TRAGA | |||
| 041 | I8-98259 112-0 | BRACKET; CHECKER | 2 | 1802- | TRAGA | |||
| 003 | I8-94155 315-2 | HINGE; DOOR FRT | 2 | 1802- | TRAGA |
