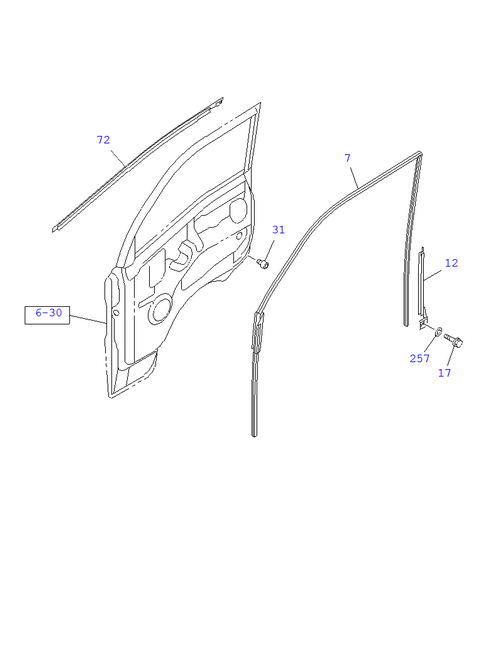

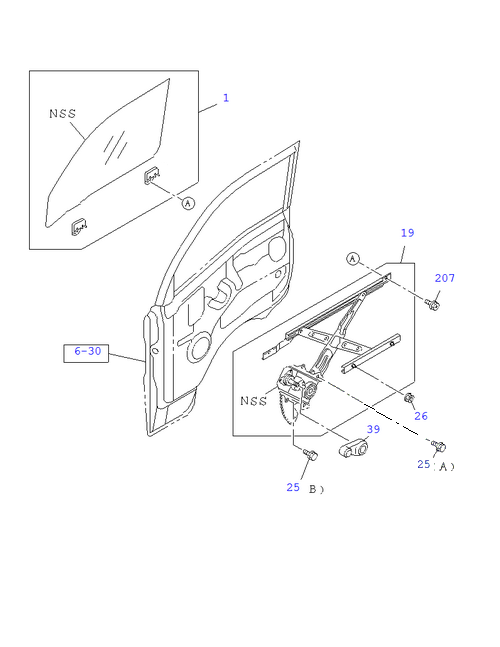

6-31 | FRONT DOOR GLASS AND REGULATOR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98259 096-A | GLASS; FRT DOOR | 1 | 1802- | TRAGA | |||
| 072 | I8-98259 137-0 | SEAL; WAIST,FRT DOOR | 1 | 1802- | TRAGA | |||
| 001 | I8-98259 095-A | GLASS; FRT DOOR | 1 | 1802- | TRAGA | |||
| 012 | I8-98259 113-2 | CHANNEL; GLASS RUN,FRT | 1 | 1802- | TRAGA | |||
| 257 | I9-09851 911-0 | WASHER; G/RUN CHANNEL | 2 | 1802- | TRAGA | ID= 6.5 OD=3 0 | ||
| 007 | I8-98259 136-2 | GLASS RUN; FRT DOOR | 1 | 1802- | TRAGA | |||
| 072 | I8-98259 138-0 | SEAL; WAIST,FRT DOOR | 1 | 1802- | TRAGA | |||
| 012 | I8-98259 114-2 | CHANNEL; GLASS RUN,FRT | 1 | 1802- | TRAGA | |||
| 019 | I8-98385 506-A | REGULATOR; WINDOW,FRT DOOR | 1 | 1802- | TRAGA | |||
| 019 | I8-98385 505-A | REGULATOR; WINDOW,FRT DOOR | 1 | 1802- | TRAGA | |||
| 039 | I8-97525 046-A | HANDLE; WINDOW REG,FRT DOOR | 2 | 1802- | TRAGA | GRAY | ||
| 007 | I8-98259 135-2 | GLASS RUN; FRT DOOR | 1 | 1802- | TRAGA | |||
| 025 | I0-28050 612-0 | BOLT; WINDOW REG | 2 | 1802- | TRAGA | (A) M6X12 FLANGE | ||
| 031 | I8-98270 611-A | STOPPER; RUBBER,DOOR INNER | 2 | 1802- | TRAGA | |||
| 025 | I0-28050 610-0 | BOLT; WINDOW REG | 6 | 1802- | TRAGA | (B) M6X10 FLANGE | ||
| 026 | I0-91180 106-0 | NUT; FLANGE,WINDOW REG | 4 | 1802- | TRAGA | M6 FLANGE | ||
| 017 | I0-28050 610-0 | SCREW; RR CHANNEL | 2 | 1802- | TRAGA | M6X10 FLANGE | ||
| 207 | I8-98188 381-0 | SCREW; DOOR GLASS | 4 | 1802- | TRAGA | M6X10 FLANGE |
