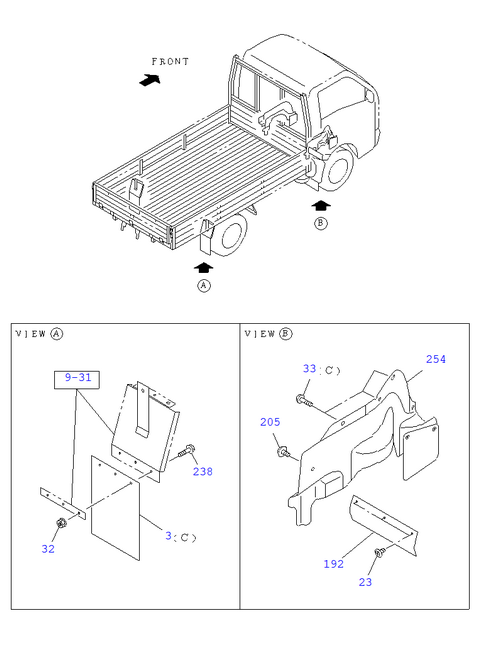

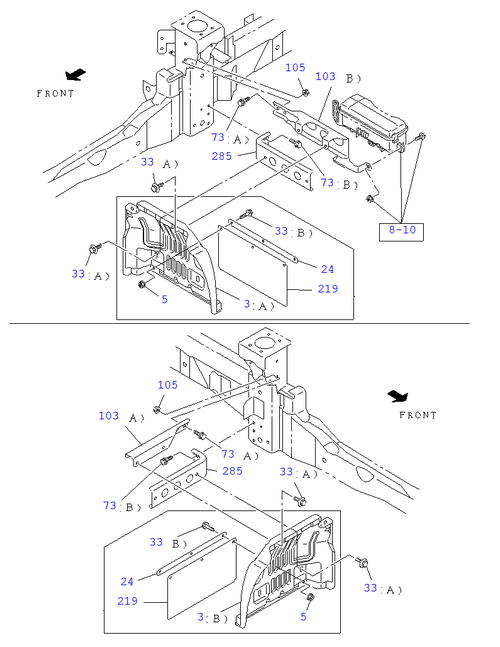

6-47 | MUD GUARD AND INSULATOR
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 073 | I0-28651 025-0 | BOLT; MUD COVER BRKT | 4 | 1802- | TRAGA | (B) M10X2 5 FLANGE | ||
| 033 | I8-98227 381-0 | BOLT; MUD COVER | 6 | 1802- | TRAGA | (B) M6X16 FLANGE | ||
| 033 | I1-09030 093-0 | BOLT; MUD COVER | 8 | 1802- | TRAGA | (A) M8X2 5 W/LK&PL WASHER | ||
| 254 | I8-98269 582-A | COVER; MUD,VALANCE | 1 | 1802- | TRAGA | |||
| 103 | I8-98258 981-A | BRACKET ASM; RR MUD FLAP | 1 | 1802- | TRAGA | (A) | ||
| 005 | I8-98227 380-0 | NUT; FLAP RUBBER | 6 | 1802- | TRAGA | M6 FLANGE | ||
| 192 | I8-98258 244-A | SEAL; MUD COVER | 2 | 1802- | TRAGA | |||
| 238 | I8-98098 459-0 | SCREW; MUD GUARD | 6 | 1802- | TRAGA | RR BODY FLAT BED; M6X16 FLANGE | ||
| 285 | I8-98258 983-A | BRACKET; MUD COVER | 2 | 1802- | TRAGA | |||
| 254 | I8-98269 581-A | COVER; MUD,VALANCE | 1 | 1802- | TRAGA | |||
| 003 | I8-98258 986-A | GUARD; MUD,RR | 1 | 1802- | TRAGA | (A) | ||
| 205 | I8-94242 150-0 | FASTENER; MUD COVER | 2 | 1802- | TRAGA | D= 5.8 SCREW & GROMMET NYLON | ||
| 032 | I8-97065 431-0 | NUT; MUD GUARD | 6 | 1802- | TRAGA | RR BODY FLAT BED; M6 FLANGE | ||
| 033 | I8-98269 815-0 | BOLT; MUD COVER | 8 | 1802- | TRAGA | (C) M6X16 FLANGE | ||
| 219 | I8-98258 988-A | FLAP; MUD GUARD | 2 | 1802- | TRAGA | |||
| 103 | I8-98309 190-A | BRACKET ASM; RR MUD FLAP | 1 | 1802- | TRAGA | (B) | ||
| 073 | I0-28650 825-0 | BOLT; MUD COVER BRKT | 4 | 1802- | TRAGA | (A) M8X2 5 FLANGE | ||
| 003 | I8-98258 987-A | GUARD; MUD,RR | 1 | 1802- | TRAGA | (B) | ||
| 024 | I8-98258 989-A | PLATE; MUD COVER | 2 | 1802- | TRAGA | |||
| 003 | I8-98258 023-A | GUARD; MUD,RR | 2 | 1802- | TRAGA | RR BODY FLAT BED; (C) | ||
| 105 | I0-91180 108-0 | NUT; BRKT | 4 | 1802- | TRAGA | M8 FLANGE | ||
| 023 | I8-94242 150-0 | FASTENER; MUD COVER | 6 | 1802- | TRAGA | D= 5.8 SCREW & GROMMET NYLON |
