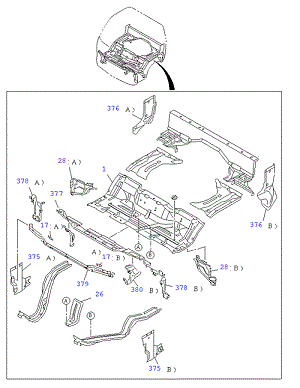

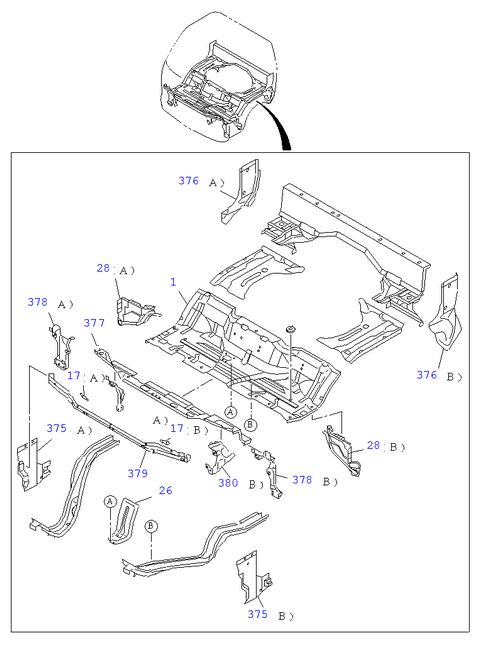

6-70 | FLOOR PANEL
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 379 | I8-97581 639-0 | PANEL | 1 | 1802- | TRAGA | |||

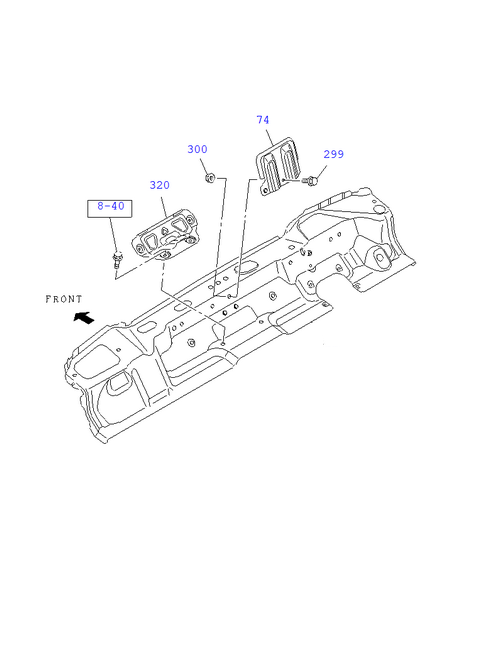

| 074 | I8-98259 182-A | COVER | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 032 | I8-94279 711-A | GROMMET; FLOOR PANEL,LOCATION HOLE | 2 | 1802- | TRAGA | |||
| 299 | I0-28050 816-0 | BOLT; COVER | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; M8X16 FLANGE | ||
| 320 | I8-98259 388-A | COVER; AIR INTAKE | 1 | 1802- | TRAGA | |||
| 300 | I8-97329 625-0 | NUT; COVER | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; M8 W/DISHED WASHER |
