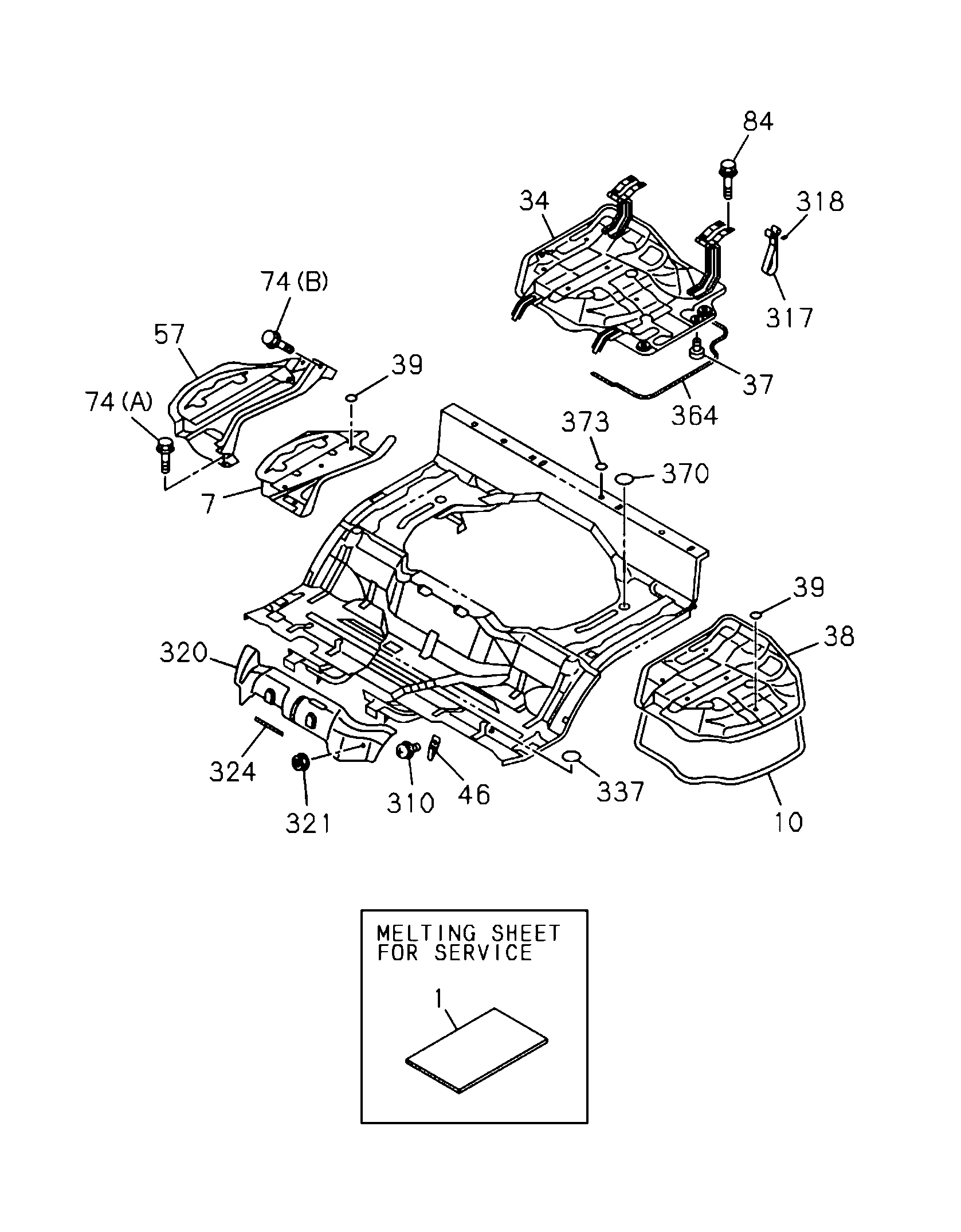

6-76 | FLOOR EQUIPMENT AND SEALING
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 320 | I8-97856 277-6 | INSULATOR; FLOOR,FRT | 1 | 1802- | TRAGA | |||
| 337 | I1-76798 029-0 | SEAL; CLIP HOLE | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; OD=2 5 BLACK | ||
| 310 | I0-28650 616-0 | SCREW; ENG COVER HOOK | 4 | 1802- | TRAGA | M6X16 FLANGE | ||
| 371 | I8-94279 714-0 | GROMMET; LOCATION HOLE | 1 | 1802- | TRAGA | 14.5X14.5 BLACK | ||
| 321 | I8-94279 997-0 | CLIP; INSULATOR,FLOOR | 3 | 1802- | TRAGA | OD=3 0 | ||
| 038 | I8-97859 917-0 | INSULATOR; ENG COVER | 1 | 1802- | TRAGA | |||
| 010 | I8-97853 010-A | SEAL; ENG COVER | 1 | 1802- | TRAGA | |||
| 074 | I0-28650 820-0 | BOLT; SUPPORT COVER TO FLOOR | 4 | 1802- | TRAGA | (A) M8X2 0 FLANGE | ||
| 037 | I5-74917 001-A | RUBBER; BUFFER,ENG COVER | 2 | 1802- | TRAGA | |||
| 364 | I8-97892 744-0 | FINISHER; ENG COVER SIDE | 1 | 1802- | TRAGA | L=1100 | ||
| 039 | I8-94279 997-0 | CLIP; INSULATOR,COVER | 5 | 1802- | TRAGA | OD=3 0 | ||
| 039 | I8-94279 997-0 | CLIP; INSULATOR,COVER | 7 | 1802- | TRAGA | OD=3 0 | ||
| 084 | I0-28650 820-0 | BOLT; ENG COVER HINGE | 4 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 318 | I0-72380 516-0 | SCREW; BAND | 2 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 001 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 1802- | TRAGA | NON ASBESTOS 10 00X6 00 T=1.5; PARTS ONLY | ||
| 007 | I8-97853 543-3 | INSULATOR; SUPPORT COVER | 1 | 1802- | TRAGA | |||
| 057 | I8-97866 687-1 | COVER ASM; SUPPORT,CAB FLOOR | 1 | 1802- | TRAGA | |||
| 074 | I0-28650 825-0 | BOLT; SUPPORT COVER TO FLOOR | 1 | 1802- | TRAGA | (B) M8X2 5 FLANGE | ||
| 046 | I8-97853 632-2 | HOOK ASM; ENG COVER | 2 | 1802- | TRAGA | |||
| 324 | I8-97892 742-0 | FINISHER; FLOOR PANEL | 1 | 1802- | TRAGA | L=14 0 | ||
| 034 | I8-97850 673-1 | COVER ASM; ENG,CAB FLOOR | 1 | 1802- | TRAGA |
